CS420
QR
001
Suitable for mantle, concave, bowl liner, and other critical wear components, our high manganese steel castings ensure longer service life, reduced downtime, and lower operating costs for your crushing operations.
Common Aliases：Concave, mantle, bowl liners, cone crusher parts, cone liners
Main Material：High manganese steel (Mn13, Mn13Cr2, Mn18, Mn18Cr2)
Casting Technology：sand casting, lost foam casting
Applications：Sand and gravel quarry, concrete mixing plants, dry mortar, desulfurization plant
We can provide wearing parts for various models cone crushers, such as cone crusher mantle, bowl liner, Cone crusher wear parts etc. And we can also manufacture products with different materials according to the drawings supplied by our customers.
Mn13Cr2 mantle & concave
Mn13Cr2 when reduce the traditional high manganese steel C, and Mn, adding Cr element, which can make up for the shortcomings of traditional high manganese steel toughness defect, effectively extending the service life of wear-resistant parts.
Mn18Cr2 mantle & concave
Using the material Mn18Cr2, the complex modification, grain refinement, grain boundary purification; Casting solidification control mode, optimization of heat treatment process, casting becomes to high hardness and good toughness, impact resistant, it is suitable for medium-sized cone crusher jobs.

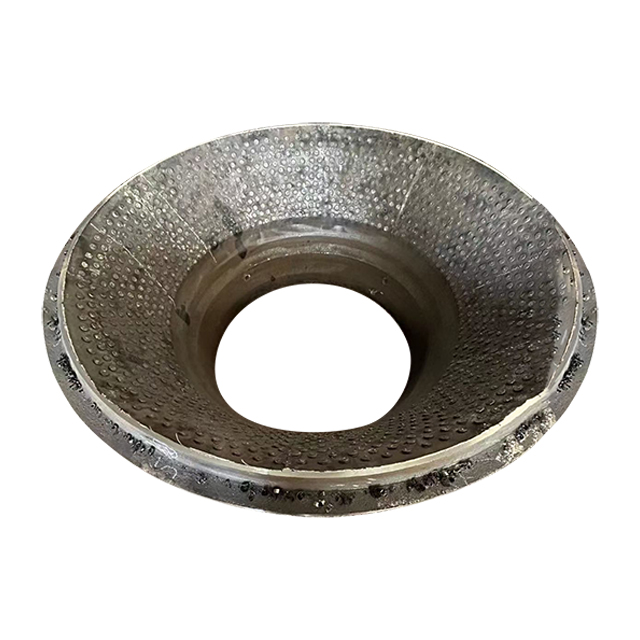

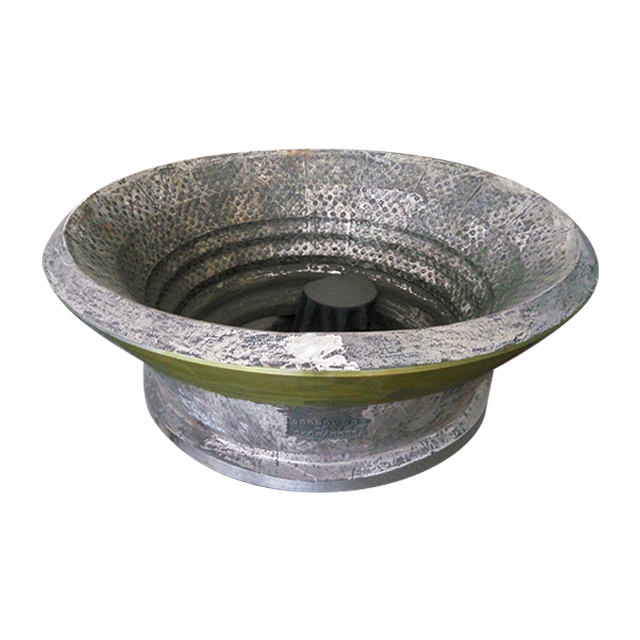

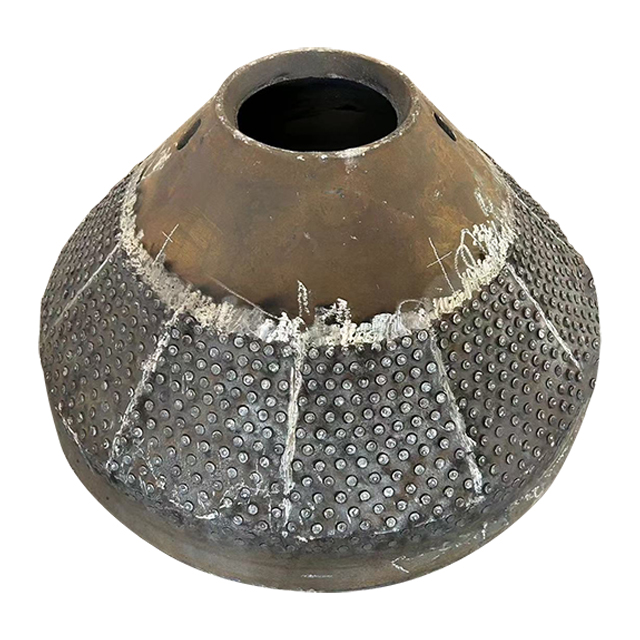

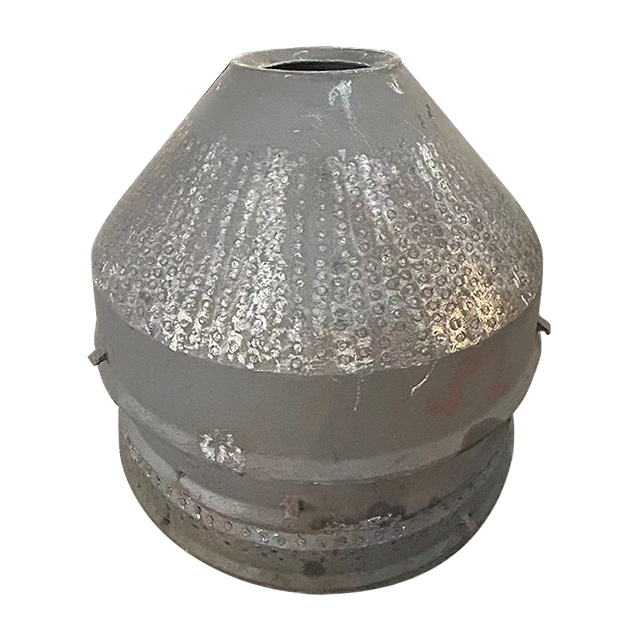

New composite mantle & concave
Low-cost high-manganese steel or ultra-high manganese steel wear parts for large matrix material at their work site complex mosaic carbide, the wear surface of the double-metal composite wear-resistant member having excellent wear resistance, non-abrasive surface has excellent ductility and toughness, reduce wear high manganese steel substrate, so that cone crusher concave substantial increase in life.
We produces manganese wear liners and accessories for most crushing brands
Above all, we also have the expertise to modify Jaw or Cone liner profiles by studying existing wear pattern of your liners and redesigning them in order to enhance wear life improve performance thus giving more value for your money.
Please contact us with you requirement: vip@qrcrusher.com
