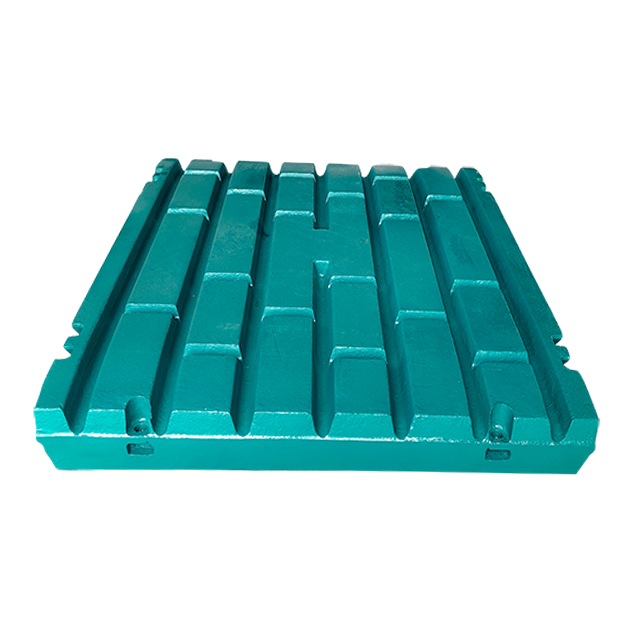

C160 Jaw Crusher Plates – Mn18 & Mn22 Manganese Steel

Product Overview

Qirun supplies Mn18 and Mn22 high manganese steel jaw plates for C160 jaw crushers used in mining, quarrying, and aggregate production.

Available as fixed and swing jaw plates, these wear-resistant castings provide high impact toughness and work-hardening performance for primary crushing applications. They are suitable for processing materials such as iron ore, granite, basalt, and limestone.

Qirun supports OEM replacement jaw plates with customized tooth profiles, dimensions, and material options. Customers can submit C160 part numbers or technical drawings for manufacturing and compatibility review.

Technical Specifications

Final dimensions, tooth geometry, material composition, and compatible part numbers must be confirmed against the actual C160 equipment configuration.

Key Features of C160 Jaw Crusher Plates

1. Designed for C160 Jaw Crushers

These replacement jaw plates are manufactured for C160 jaw crusher applications.

Both fixed and swing jaw plates form the working surfaces of the crushing chamber. Their geometry and installation dimensions are important for proper equipment fit and crushing operation.

Qirun supports replacement manufacturing based on original part specifications, customer drawings, or dimensional requirements.

2. Mn18 and Mn22 Manganese Steel Options

Mn18 and Mn22 high manganese steel grades offer impact toughness and the ability to work-harden under repeated crushing loads.

During operation, suitable impact and compressive stresses can increase the hardness of the jaw plate working surface.

Material performance depends on alloy composition, heat treatment, feed abrasiveness, and crushing conditions.

3. Fixed and Swing Jaw Plate Configurations

The C160 jaw crusher uses two main crushing surfaces.

Fixed Jaw Plate

The fixed jaw plate is mounted on the stationary side of the crushing chamber. It provides a supporting crushing surface against which incoming material is compressed.

Swing Jaw Plate

The swing jaw plate is mounted on the movable jaw assembly. During operation, its movement applies compressive force to the feed material.

Both components require accurate mounting dimensions and suitable tooth profiles to support correct installation and operation.

4. Customized Tooth Profiles

Jaw plate tooth geometry affects material gripping, crushing chamber behavior, and wear patterns.

Qirun supports tooth profiles manufactured according to customer drawings and equipment requirements.

Customization can include:

• Tooth pitch and height

• Corrugated crushing surfaces

• Plate thickness and overall dimensions

• Mounting and contact surfaces

• Material grade and casting specifications

The supplied profile must match the jaw crusher configuration and intended operating conditions.

5. TIC-Reinforced Material Option

For selected high-abrasion applications, manganese steel jaw plates may be manufactured with titanium carbide (TIC) reinforcement.

TIC inserts provide additional localized wear resistance in designated working areas.

Their suitability depends on the jaw plate design, reinforcement arrangement, and operating conditions.

The performance of TIC-reinforced jaw plates should be evaluated separately from standard Mn18 or Mn22 castings.

Mn18 vs. Mn22 Jaw Crusher Plates

Both materials are used in heavy-duty crusher wear components, but their performance varies with alloy composition and operating conditions.

Higher manganese content does not automatically guarantee longer service life. Feed material, crushing pressure, tooth profile, alloy chemistry, and heat treatment all influence wear performance.

C160 Fixed Jaw Plate and Swing Jaw Plate

Correctly matching the fixed and swing jaw plates is important when replacing worn crusher components.

When ordering replacement components, customers should identify whether they need a single fixed plate, a swing plate, or a complete matched set.

OEM C160 Jaw Plate Manufacturing

Qirun provides casting and replacement manufacturing support for C160 jaw crusher wear parts.

Our OEM services include:

• Mn18 and Mn22 manganese steel castings

• Fixed and swing jaw plate production

• Custom tooth profiles and crushing surfaces

• TIC-reinforced material options where applicable

• Manufacturing according to technical drawings

• Machining of specified installation surfaces

• Inspection according to agreed technical requirements

Information Required for a Quotation

Please provide:

1. Crusher model: C160

2. Fixed or swing jaw plate requirement

3. Original part number, if available

4. Technical drawings or dimensions

5. Preferred material: Mn18, Mn22, or TIC-reinforced

6. Required quantity

7. Feed material and operating conditions

Qirun can review your submitted specifications before confirming manufacturing requirements.

Request C160 Jaw Crusher Replacement Plates

Looking for Mn18 or Mn22 replacement jaw plates for your C160 jaw crusher?

Qirun supplies high manganese steel fixed and swing jaw plates for mining, quarrying, and aggregate crushing applications.

Contact our team with your C160 part number, technical drawing, tooth profile, or material requirements to discuss custom manufacturing and replacement wear parts.
