Aftermarket Metso GP550 Crushing Cones

Our cone crusher mantle and concave parts are compatible with Metso GP550 cone crushers, made from high-manganese steel with excellent work-hardening performance. They feature standard installation size, stable crushing performance, and high wear resistance, suitable for mining, quarry, and construction aggregate production with reliable quality.

Quantity:
MATERAIL:	Mn13%,Mn18%,Mn22%
Application:	Quarry,Mining,construction,
Color:	BLUE,GREEN,DARK,BLACK,OR CUSTOMIZED
LEAD TIME:	20-30Days
HS CODE:	8474900000
Availability:





Inquire Add to Basket

Model:
GP330
Brand:
QR

Product Description

PRODUCTION DESCRIPTION

Cone Crusher Wear Spare Parts GP550

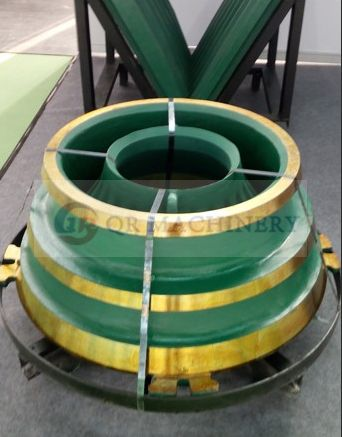

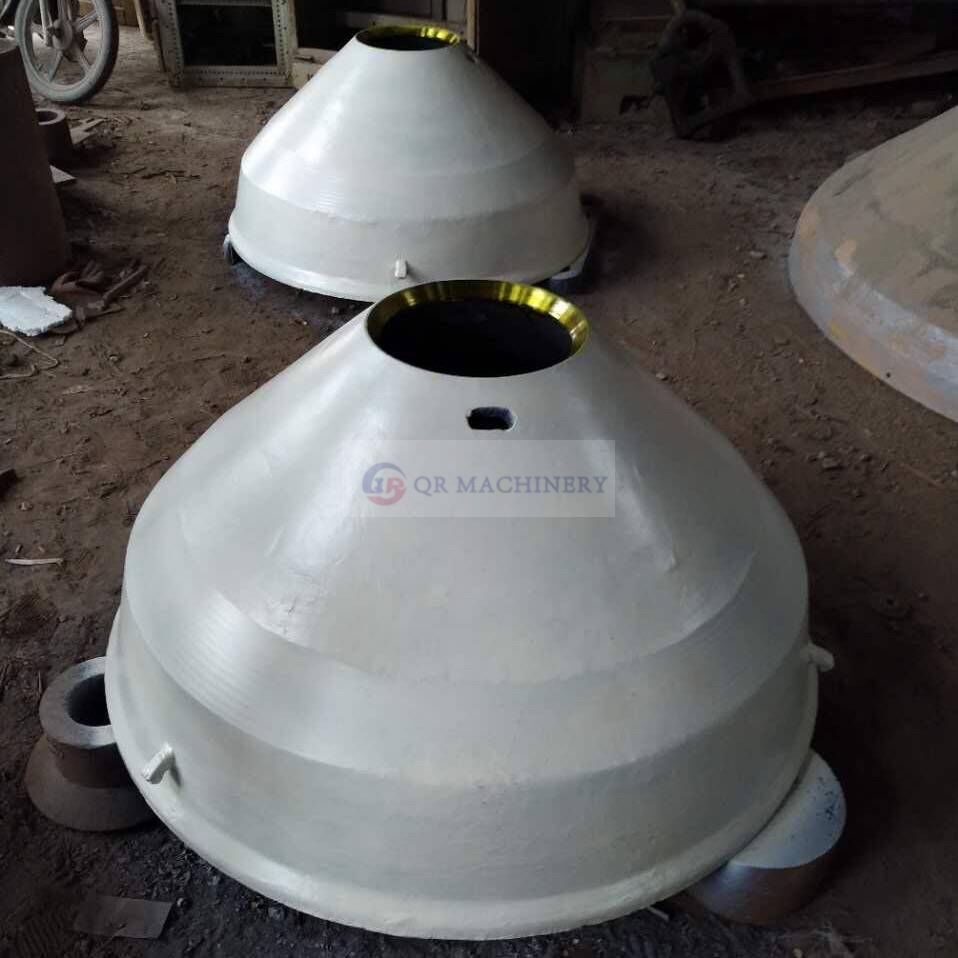

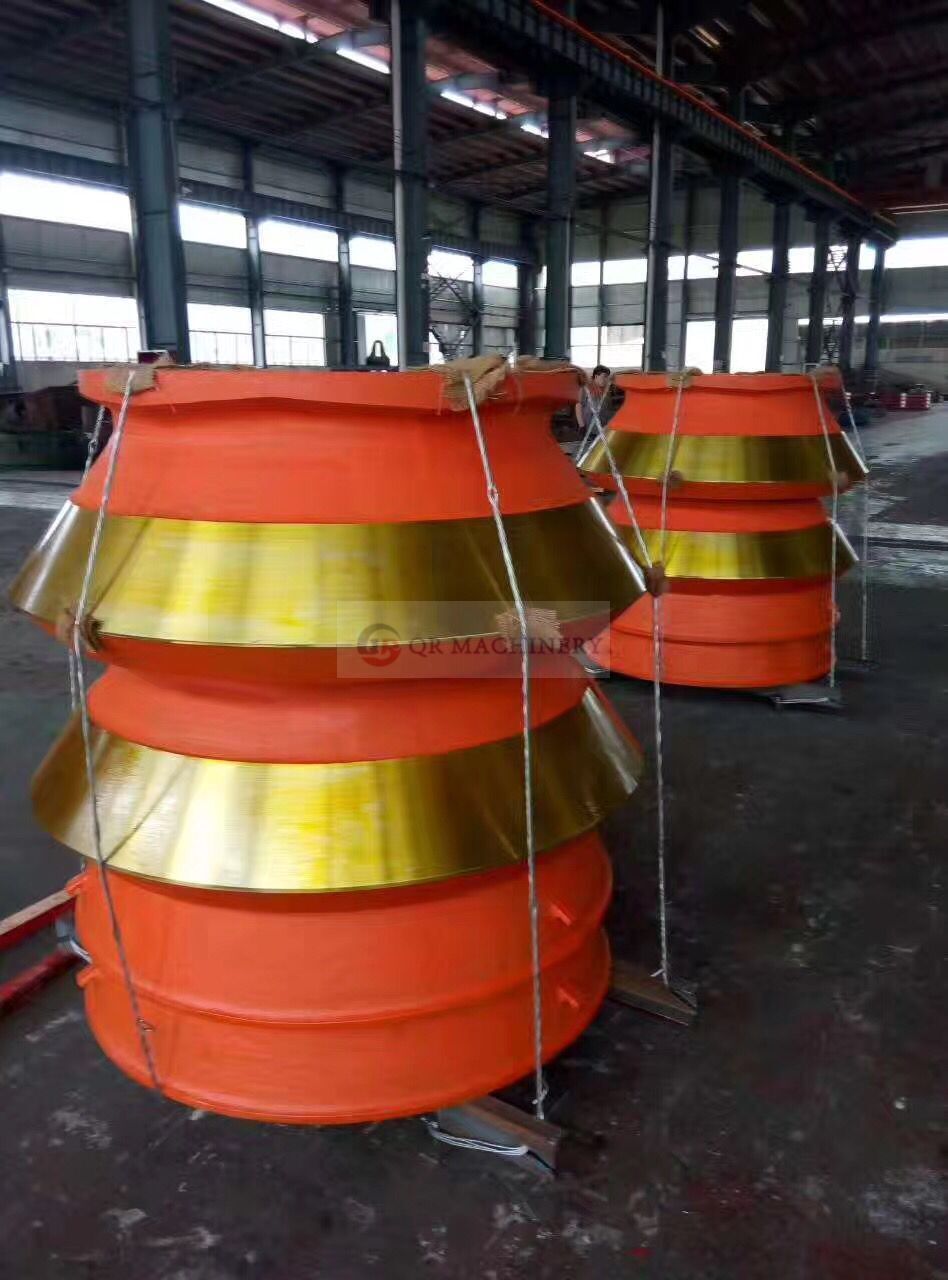

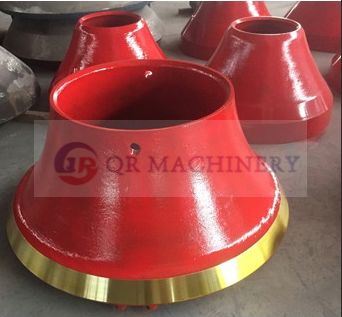

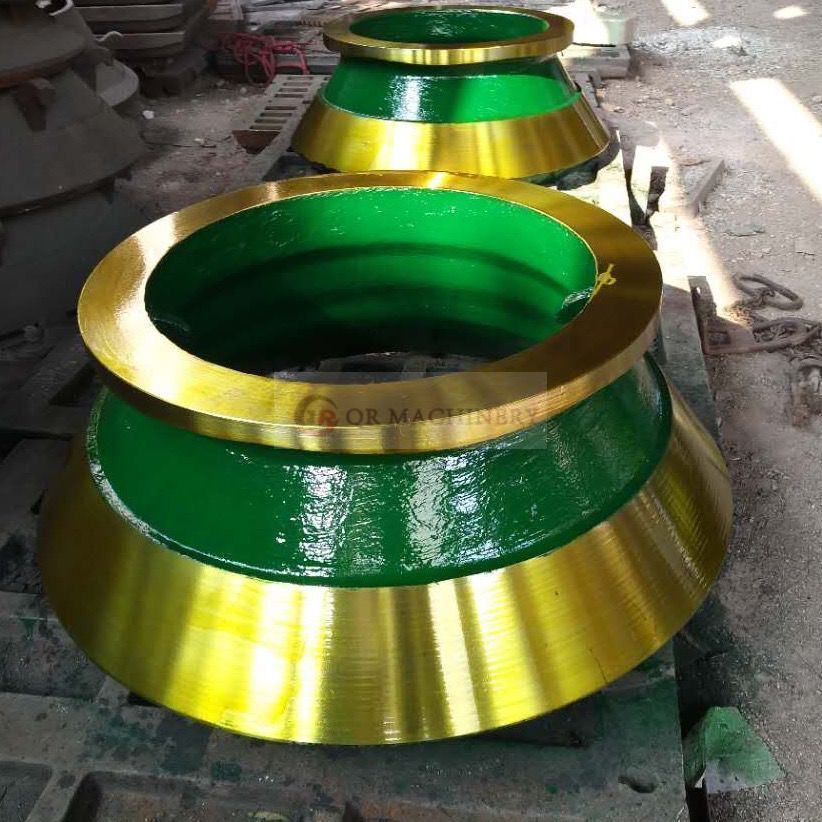

Mantle/Torch Ring/Bowl liner

Mantle and bowl liner are the main wearing parts for cone crusher,Qirun can manufacture numerous model of mantles and concaves for cone crusher.For the material of concave,Qirun use the hadifield-steel,like Mn13cr2,Mn18cr2,Mn22cr2,to ensure the wear resistance.our cone crusher parts are widely used in mining,construction,cement,quarry,road building and metallurical industry,and is suitable for hard and mid-hard rocks and ores.

after the modification treatment,combining with the special processing techniques,cones have a service life 10%-15% longer than those made of traditional materials.

High Manganess Casting Material Chemical Composition(%)

Material Code	C	Mn	Si	Cr	P	S
ZGMn13Cr2	C:0.9-1.3	Mn:11.0-14.0	Si:0.3-1.0	Cr:1.5-2.5	P:≤0.06	S:≤0.04
ZGMn18Cr2	C:1.1-1.5	Mn:16.5-19.0	Si:≤0.8	Cr:1.5-2.5	P:≤0.07	S:≤0.04
ZGMn22Cr2	C:1.1-1.4	Mn:20-24	Si:≤0.8	Cr:1.5-2.5	P:≤0.07	S:≤0.04
