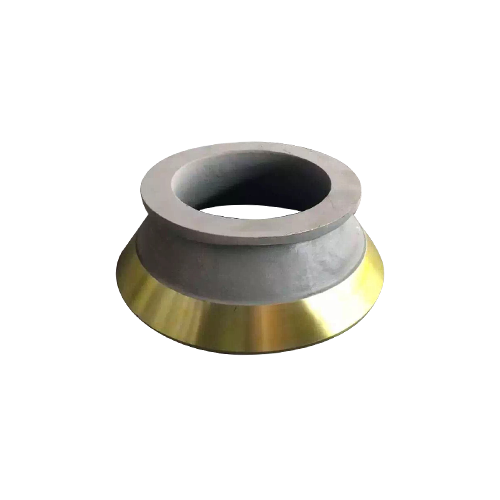

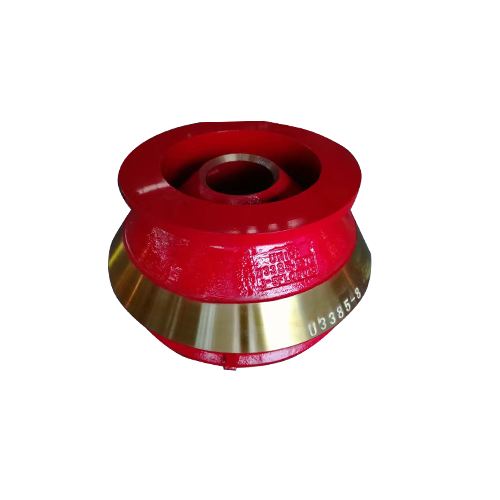

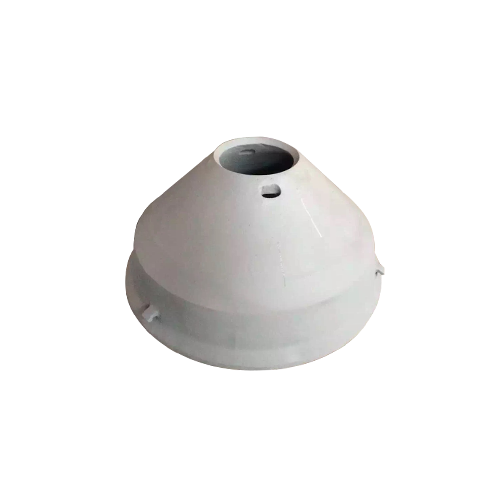

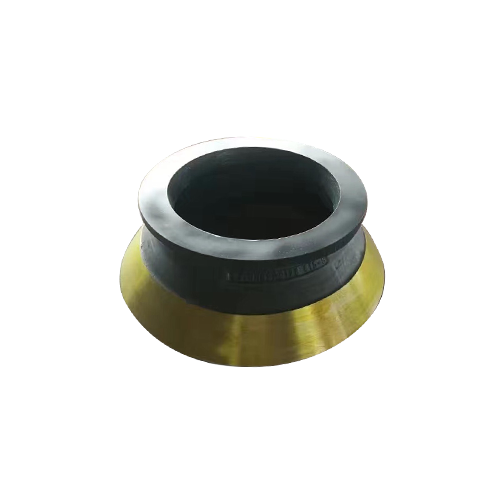

Mn18cr2 HP300 Mantle And Bowl Liner for Quarry

Our HP300 bowl liner and mantle are core wear parts for HP300 hydraulic cone crushers, made of high manganese and alloy modified steel. With professional casting and heat treatment, they feature excellent wear and impact resistance. Strictly produced per original specs, the optimized cavity ensures even discharge size and high crushing efficiency. Available in customized production and OEM service, factory direct supply cuts costs. Widely used in mining and aggregate crushing, they deliver long service life and outstanding cost performance.

Quantity:
Material:	mn13,Mn18,Mn22 alloy insert
Availability:





Inquire Add to Basket

Model:
HP300
Brand:
QR

Product Description

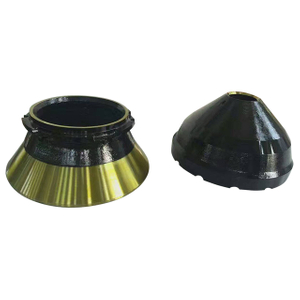

Our HP300 Bowl Liner and Mantle are precision-manufactured wear-resistant spare parts tailor-made for Nordberg HP300 hydraulic cone crushers, specially engineered to withstand severe abrasion, frequent impact and heavy-load working conditions in mines, quarry aggregates and stone processing fields. As core crushing consumables, these two liners dominate the whole crushing procedure of hydraulic cone crushers, featuring outstanding anti-abrasion property, stable mechanical performance and prolonged service lifespan while guaranteeing even finished grain size during continuous high-intensity ore crushing.

What are Bowl Liner and Mantle?

Bowl liner and mantle serve as the indispensable core wearable components of HP300 hydraulic cone crusher. The bowl liner (also named concave) is fixed inside the adjustment ring as stationary lining, while the mantle is tightly mounted on the movable cone head as rotating lining. The pair of liners jointly form the complete crushing cavity. When equipment operates, the eccentric gyration of movable cone drives mantle to squeeze, grind and pound raw stones and ores against fixed bowl liner to realize material fragmentation and particle shaping. Their casting quality, machining precision and wear resistance directly decide crusher output efficiency, finished aggregate quality and overall equipment running cost of crushing stations.

High-Quality Materials for Superior Performance

We adopt premium customized casting raw materials to produce HP300 crusher liners, realizing optimal matching among material hardness, impact toughness and abrasive resistance. Three mainstream material options are

available for different working conditions as below:

High Manganese Steel (Mn13Cr2)

With excellent intrinsic toughness and strong instantaneous impact resistance, this material can generate obvious work hardening effect under repeated ore hitting, continuously raise surface hardness during operation. Perfectly applicable for coarse and medium crushing of medium-hard rocks such as limestone, dolomite and common iron ore.

Alloy Modified High Manganese Steel (Mn18Cr2)

Optimized metallurgical formulation with added chromium, molybdenum and other trace alloy elements greatly upgrades wear resistance and anti-cracking capacity. Effectively prevents brittle fracture under complex alternating impact loads, widely used for medium and fine crushing of abrasive granite, basalt and hard metallic ores.

High-Chromium Alloy Reinforced Steel (Mn22Cr2 + TIC Optional Insert)

Upgraded high-alloy grade with optional titanium carbide embedded reinforcement for ultra-severe abrasion scenarios. Boasts top-level wear performance among three materials, ideal for ultra-hard high-abrasive raw materials like quartz stone, taconite ore and sharp gravel.

Key Features

·Outstanding Abrasion Resistance: Advanced integral sand casting + multi-step tempering heat treatment technology effectively improves liner surface hardness, slows down material abrasion under long-term hard rock friction and extends service cycle remarkably.
·Excellent Anti-Impact Toughness: Scientific alloy composition avoids liner crack, deformation and early scrapping under sudden massive feeding impact, lowering unexpected equipment shutdown risks.
·Original Cavity Profile Design: Strictly produced per HP300 original OEM dimension parameters; standardized crushing cavity ensures unobstructed material falling, uniform finished particle grading and stable crusher processing capacity.
·High Dimensional Compatibility: Precise casting tolerance ensures seamless installation matching standard HP300 hydraulic cone crushers without any on-site cutting or modification work.
·Economical Operation Cost: Longer service life reduces spare part replacement frequency, cuts manual replacement labor cost and minimizes crusher downtime loss effectively.

Why Choose Our HP300 Bowl Liner and Mantle?

1、Extended Service Life: Premium raw material plus mature foundry craft greatly prolong liner service time, reduce production loss caused by frequent part changeover.
2、Wide Industry Application: Suitable for mining exploitation, quarry aggregate production, highway construction material processing, metallurgical ore crushing and solid waste recycling, covering medium and fine crushing of all kinds of rocks and minerals.
3、Flexible Customization Service: Support customized cavity design, material formulation and OEM casting production based on customers’ actual feeding material, crushing granularity requirement and site working conditions.
4、Direct Factory Supply: Products shipped directly from our professional casting foundry without intermediate dealers, stable stock guarantee, fast delivery cycle and full set of after-sales technical guidance including installation suggestions and wear troubleshooting.

Item No.	Machine Type	DESCRIPTION
N55208281	HP300	BOWL LINER
N55208280	HP300	MANTLE
N55208283	HP300	MANTLE
N55308265	HP300	MANTLE
N55308267	HP300	MANTLE
N55208286	HP300	BOWL LINER
N55308266	HP300	MANTLE
N55208285	HP300	BOWL LINER
N55308262	HP300	MANTLE
N55208272	HP300	mantle
7023508200	HP300	BOWL
N55308283	HP300	Bowl Liner SH
55308261	HP300	Standard M-chamber
55208263	HP300	Standard M-chamber
N55208271	HP300	Crushing Mantle STD C
N55308252	HP300	Mantle
N55208284	HP300	Bowl Liner
7055308265	HP300	Mantle
N55308267	HP300	MANTLE
N55308262	HP300	MANTLE
N55308261	HP300	MANTLE
N55208282	HP300	BOWL LINER STD
N55208273	HP300	BOWL LINER STD
N55208269	HP300	BOWL LINER STD
7055308252	HP300	MANTLE STD EC
N55208266	HP300	BOWL LINER STD EC

Our HP300 Bowl Liner and Mantle have gained consistent positive feedback from global crushing plant clients with stable quality, low failure rate and prominent cost-performance ratio. No matter for mineral concentration processing or manufactured sand aggregate production, our wear liners can sustain long-term steady running under harsh high-abrasion working environment.

Contact us right now to obtain detailed technical parameters, bulk wholesale quotation and personalized wear part upgrade solutions for your HP300 cone crusher equipment.
