4.25ft
QR
02
Designed for Fine Crushing
Specifically matched for the Symons 4.25FT Short Head cone crusher to deliver efficient fine crushing performance.
High Manganese Steel Construction
Manufactured from precision-cast high manganese steel for excellent toughness, wear resistance, and long service life.
Stable & Reliable Operation
Strong structural integrity helps reduce vibration, unexpected shutdowns, and maintenance frequency.
Optimized for Aggregate Quality
Engineered to produce consistent, cubical aggregates suitable for concrete, asphalt, sand, and manufactured stone production.
Enhanced Wear Resistance
Proprietary quenching treatment creates a more uniform hardness surface to withstand continuous sliding abrasion.
Accurate Particle Size Control
Tight-tolerance mantle and concave design improves crushing precision while reducing excess fines.
Higher Production Efficiency
Increases the yield of saleable material and supports continuous production with fewer interruptions.
Lower Operating Costs
Extended liner life and reduced replacement frequency help improve overall plant profitability.
Specification | Details |
|---|---|

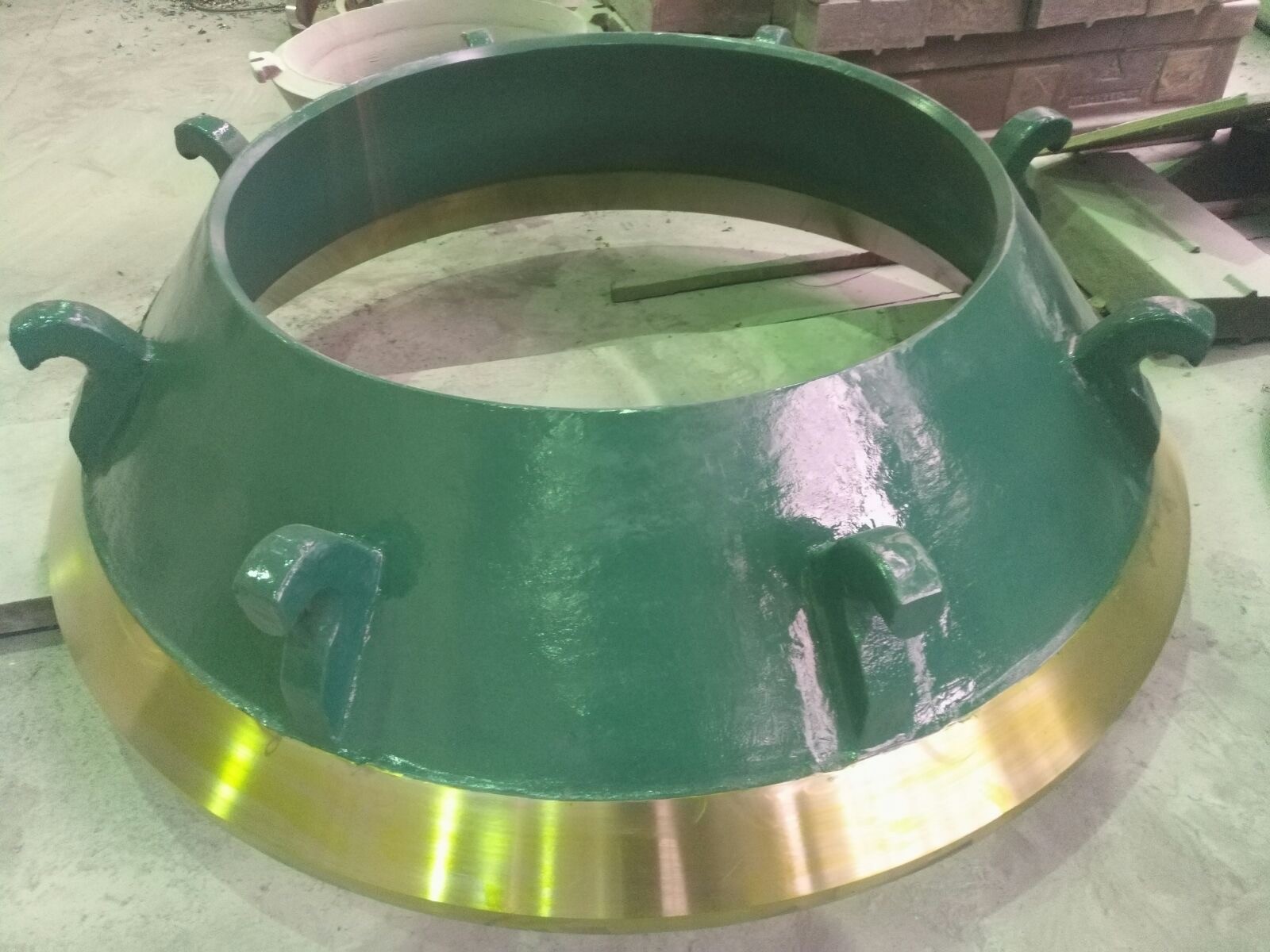

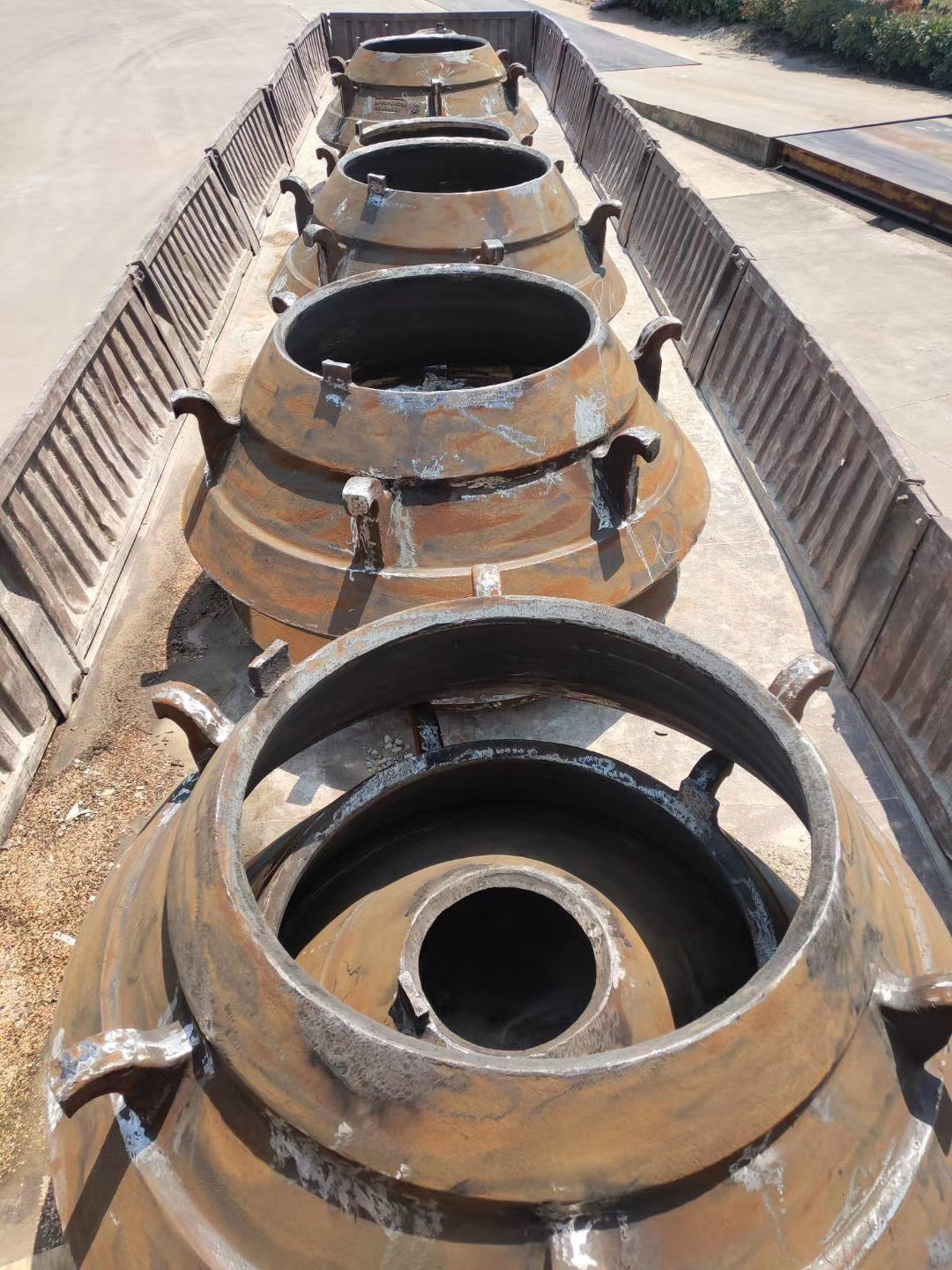

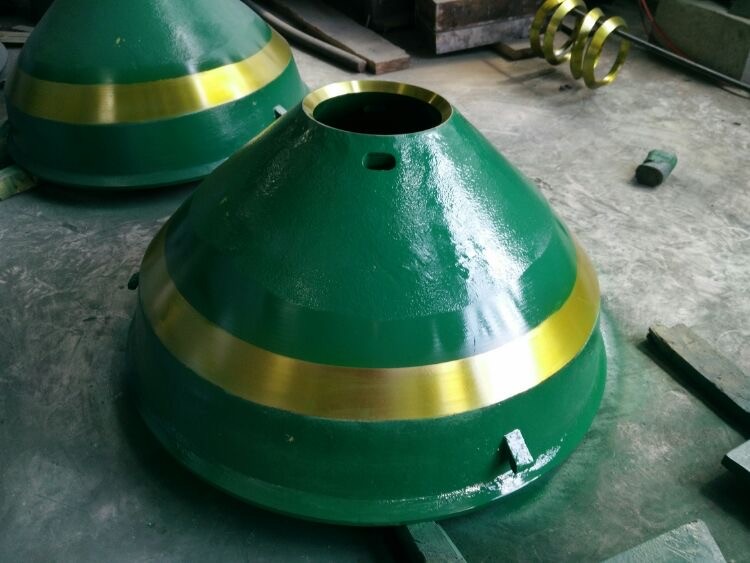

Product Name | Symons 4.25FT Short Head Cone Liners (Mantle & Concave Bowl Liner) |
Applicable Crusher Model | Symons 4.25ft Short Head |
Material | High Manganese Steel (Mn18Cr2) |
Application | Fine Aggregate Crushing (Concrete, Asphalt, Sand, Manufactured Stone) |
Manufacturing Process | Precision Casting |
Heat Treatment | Proprietary Quenching Process / Water Toughening |
Performance Features | Uniform Hardness, Superior Sliding Wear Resistance, Tight-Tolerance Cavity |
Quality Inspection | Chemical Composition Analysis, Ultrasonic Testing (UT), Hardness Testing |
Certification | ISO 9001, CE |
Warranty | 6-12 Months |
Maximizing the operational uptime of your aggregate plant requires components that do more than just fit; they must actively enhance the crushing process. Our mantle and concave bowl liners are meticulously crafted to deliver tangible improvements to your daily production metrics, ensuring that every ton of rock processed yields the highest possible value for your facility.
Exceptional Wear Resistance: The specialized alloy composition hardens continuously under impact, meaning the longer your crusher runs, the more resilient the liners become against abrasive sliding wear.
Optimized Particle Shape: By maintaining a consistent crushing chamber geometry, these liners help produce uniform, cubical aggregates that meet the strict specifications of premium asphalt and concrete producers.
Reduced Waste Generation: The precisely engineered cavity minimizes the production of unsaleable fines, ensuring a higher percentage of your crushed rock is ready for the market.
Simplified Maintenance: Manufactured with exacting tolerances, these replacement parts drop seamlessly into your equipment, drastically cutting down the hours your maintenance crew spends on installation and adjustments.
To fully understand the value these components bring to your operation, it is essential to look at the engineering principles and rigorous processes that dictate their performance in the field.
The foundation of exceptional crushing performance lies in the metallurgical integrity of the wear parts. Cast from premium High Manganese Steel (Mn18Cr2), these liners are specifically formulated for the high-friction environment of fine aggregate crushing. As the crusher operates, the surface of the metal undergoes severe impact, triggering a dynamic work-hardening effect. This transformation allows the core to remain ductile while the exterior develops an armor-like resistance, significantly extending the operational lifespan of the components.
Achieving structural perfection requires advanced thermal processing. We utilize a proprietary quenching process, commonly referred to as water toughening, to ensure a uniform hardness profile across the entire casting. This critical step eliminates internal stresses and dissolves brittle carbide networks that could lead to catastrophic failure under heavy loads. The result is a robust, fracture-resistant component that maintains its integrity during the most demanding crushing cycles.
Downtime is the enemy of profitability. To ensure swift and hassle-free replacements, our engineering team strictly controls the cavity tolerances of both the mantle and the concave. This dedication to precision guarantees a flawless, seamless fit for all Symons 4.25ft Short Head models. By maintaining the optimal geometry of the crushing chamber, these liners prevent uneven wear patterns and protect the underlying mechanical structures of your equipment.
Your bottom line depends on the volume of saleable product you generate. The optimized profile of our cone liners provides precise control over the final discharge size. By facilitating a more efficient crushing action, these components drastically reduce the generation of low-value fine dust. Instead, they promote the creation of high-quality, cubical aggregates, directly boosting the yield of premium materials required for commercial construction projects.
Consistency is non-negotiable in heavy industry. Aligning with top international standards, every single batch of our castings undergoes a rigorous inspection protocol. From comprehensive chemical composition analysis to ultrasonic testing (UT) for internal flaws, and precise hardness evaluations, we leave nothing to chance. Detailed quality inspection reports accompany our products, ensuring absolute traceability and peace of mind for your procurement team.
Supply chain efficiency is critical for maintaining continuous operations. As a direct manufacturing source, we eliminate unnecessary intermediaries, providing you with streamlined access to critical wear parts. Leveraging an extensive inventory of standard molds and a highly responsive production schedule, we ensure rapid dispatch. This capability significantly reduces your waiting times, minimizes unexpected downtime, and lowers your overall procurement costs.
Our commitment to your operational success extends far beyond the point of delivery. We stand behind the durability of our products with a solid 6 to 12-month warranty. Furthermore, our technical experts are available to provide comprehensive support, including on-site measurement assistance, installation guidance, and customized cavity optimization. We partner with you throughout the entire lifecycle of the equipment to ensure maximum return on your investment.
Sourcing reliable crusher wear parts is a strategic decision that impacts your entire production facility. We understand the rigorous demands of the aggregate industry and have tailored our manufacturing and service capabilities to meet those exact needs. Partnering with us means securing a continuous flow of premium components that keep your machinery running at peak performance.
Uncompromising Material Purity: We source only the highest-grade raw materials, ensuring that every casting delivers the exact metallurgical properties required for severe crushing applications.
Advanced Foundry Technology: Our state-of-the-art casting facilities utilize automated processes to guarantee dimensional accuracy and structural soundness in every mantle and bowl liner we produce.
Proactive Inventory Management: By maintaining strategic stock levels of critical components, we empower your supply chain, allowing you to respond swiftly to unexpected maintenance requirements.
Engineering Expertise: Our team possesses deep knowledge of crusher mechanics, enabling us to offer insightful recommendations that enhance your overall crushing efficiency and reduce cost-per-ton.
Global Delivery Network: We have refined our logistics operations to ensure that your critical replacement parts arrive securely and on schedule, regardless of your facility's location.
To assist your procurement and maintenance teams in making informed decisions, we have compiled detailed answers to the most common technical inquiries regarding our Symons 4.25ft Short Head cone liners.
The Mn18Cr2 alloy contains 18% manganese and 2% chromium. The high manganese content provides excellent work-hardening properties, meaning the surface becomes harder as it absorbs impact. The addition of chromium enhances the alloy's initial hardness and provides superior resistance to the severe sliding wear typically encountered in fine crushing stages, ensuring a longer operational life.
Our water toughening process involves heating the casting to a precise temperature and then rapidly cooling it in water. This prevents the formation of brittle carbide networks along the grain boundaries, ensuring a uniform hardness profile. It results in a component that is highly resistant to cracking and spalling under extreme crushing forces, safeguarding your equipment from sudden failures.
Absolutely. The tight-tolerance cavity design of our mantle and concave ensures a consistent closed-side setting (CSS) and maintains the optimal crushing chamber geometry. This precise control facilitates superior inter-particle crushing, which significantly improves the cubical shape of the final aggregate, making it ideal for high-spec concrete and asphalt applications.
We provide comprehensive documentation for every batch, ensuring full traceability and compliance with industrial standards. This includes chemical composition analysis reports, hardness test results, and Ultrasonic Testing (UT) certificates confirming the absence of internal casting defects. Our manufacturing facilities also operate under strict ISO 9001 and CE certifications.
We utilize advanced 3D scanning and precision machining technologies to manufacture our liners to exact dimensional tolerances. Before dispatch, each component undergoes rigorous dimensional checks against the original specifications. This guarantees a seamless, drop-in fit, which minimizes installation time and prevents damage to the crusher's critical seating surfaces.
