Support stable production and lower maintenance risk
Consistent crushing action helps reduce abnormal vibration, minimize mechanical fatigue, and improve plant uptime, making continuous high-capacity operation more reliable.
Product Specifications
Specification Category | Details |
|---|

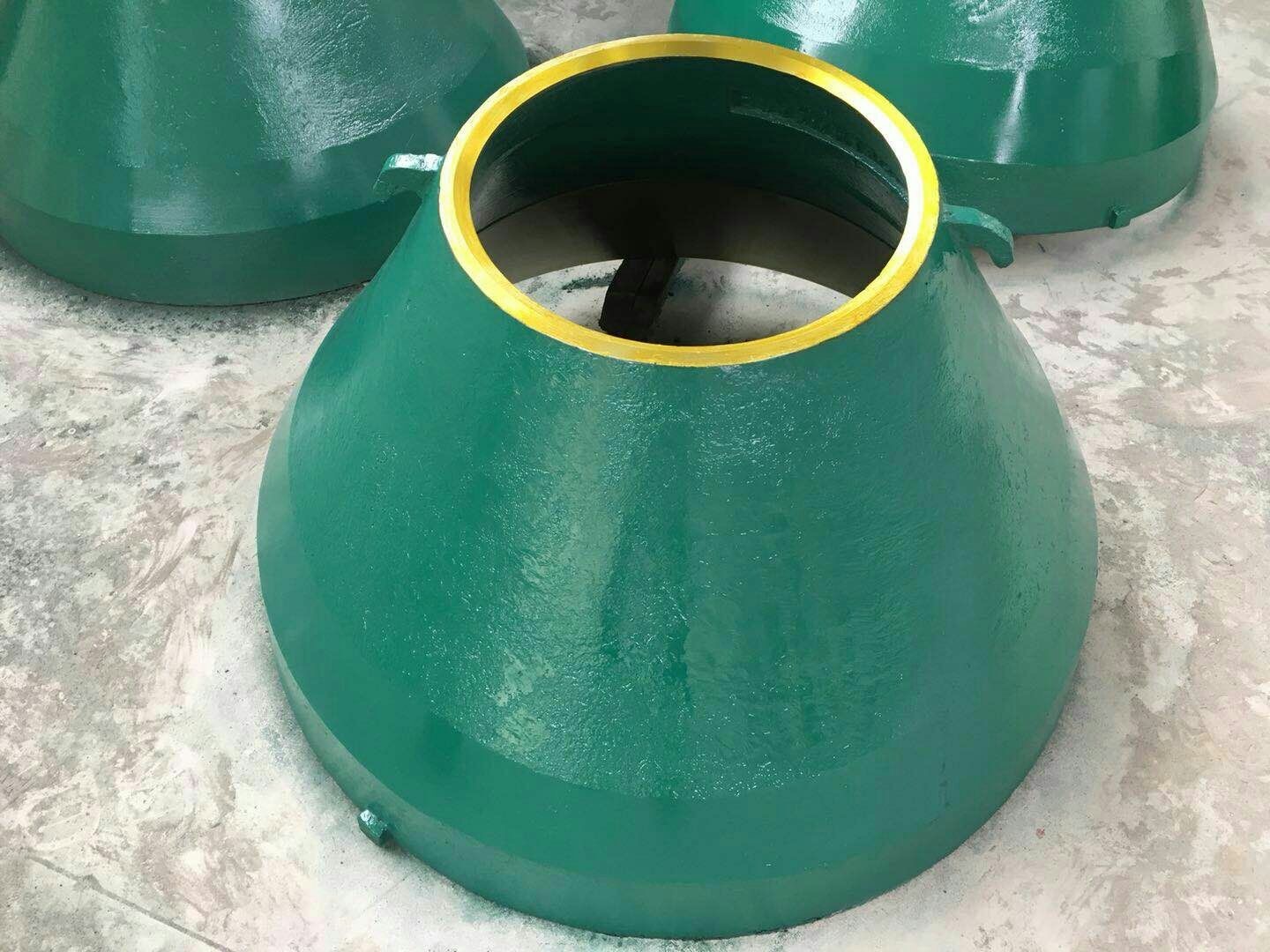

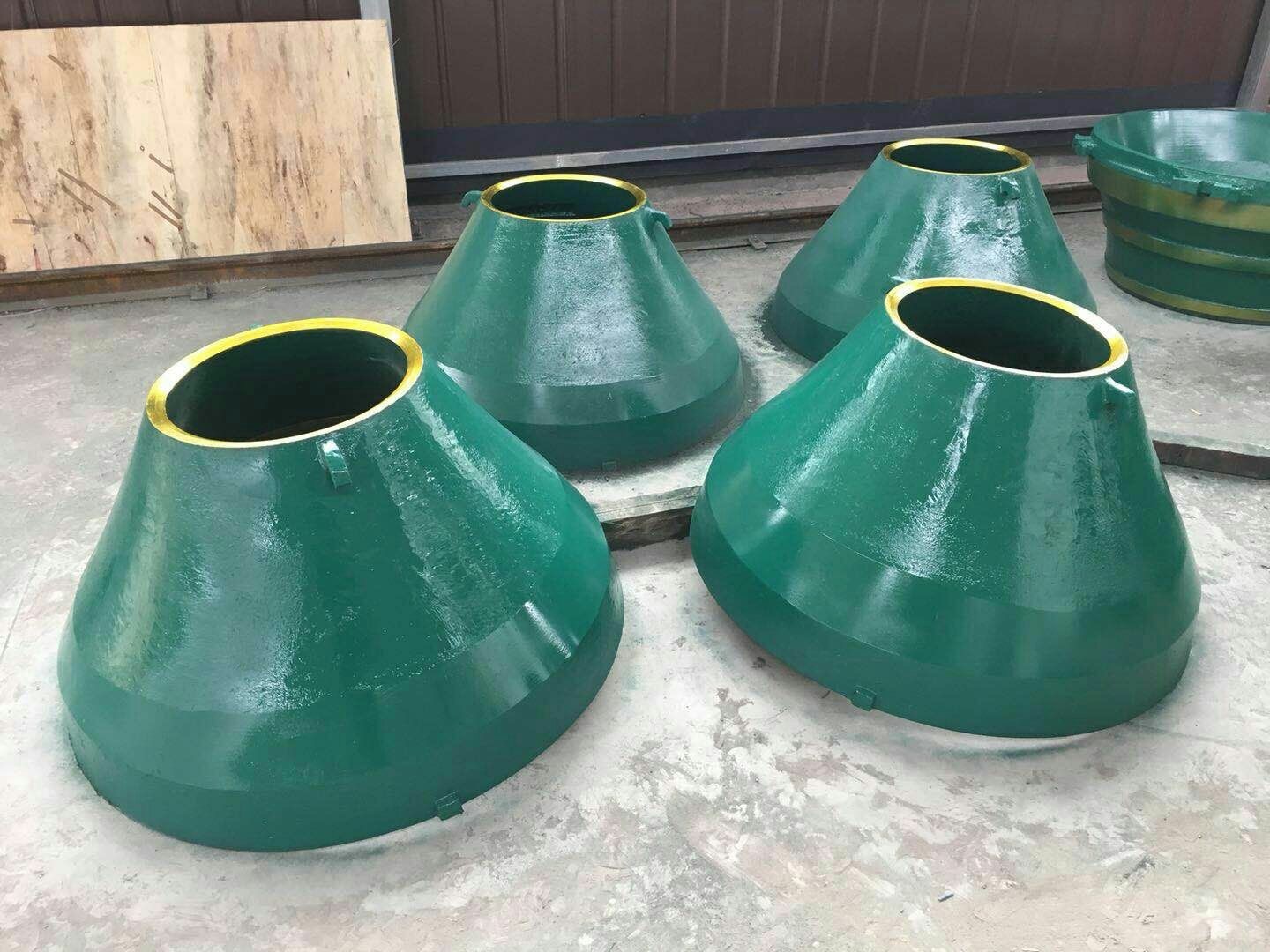

Product Name | Sandvik CH440 Cone Crusher Spares (Mantle/Concave, etc.) |
Applicable Brand & Model | Sandvik CH440 / Sandvik Cone Crusher |
Main Spare Types | Mantle, Concave/Bowl Liner, Eccentric Bushings, Main Shafts, Head Nuts, Torch Rings, Frame Liners |
Core Material | High Manganese Steel Alloy (Mn13Cr2, Mn18Cr2, Mn22Cr2) & Customized Materials |
Manufacturing Process | Advanced Casting Technology |
Surface Treatment | Spray-Paint / Polishing |
Application Fields | Mining, Quarrying, Aggregates Production, Metallurgy, Construction |
Applicable Materials | Granite, Basalt, Iron Ore, Limestone, River Stone (Hard & Abrasive) |
Quality Control | Strict Inspection, Dimensional Accuracy Test, Chemical Analysis, Flaw Detection |
Certification | ISO 9001 |
Supply Mode | Factory Direct Supply / OEM Replacement |
Key Features & Highlights
Engineered for maximum resilience, these components are designed to elevate the efficiency of your reduction circuits. The meticulous attention to material science and mechanical geometry ensures that every spare part contributes to a smoother, more predictable crushing operation.
Work-Hardening Capability: The surface dynamically hardens under continuous impact, continuously renewing its wear-resistant shield while processing abrasive ores.
Optimized Chamber Geometry: Maintains the ideal crushing profile throughout the wear life, ensuring uniform product gradation and reducing recirculating loads.
Vibration Mitigation: Perfectly balanced and machined components reduce eccentric wear on the main shaft and bronze bearings, extending the life of the entire machine.
Thermal Stability: Advanced casting techniques ensure the metal matrix remains stable even under the intense heat generated by continuous rock-on-metal friction.
Premium Materials & Wear Resistance
The foundation of our crushing components lies in our uncompromising approach to metallurgy. Processing abrasive materials requires a sophisticated balance of surface hardness and internal toughness, which is why we utilize premium high-manganese steel alloys, specifically formulated for high-impact environments.
Mn13Cr2 Alloy: Ideal for standard hard rock crushing, providing a reliable baseline of work-hardening performance for limestone and river stone processing.
Mn18Cr2 Alloy: Engineered for highly abrasive applications, this grade offers superior longevity when processing granite and basalt, significantly delaying the onset of surface degradation.
Mn22Cr2 Alloy: The ultimate solution for extreme impact and severe abrasion, perfect for iron ore and heavy metallurgical slag processing.
Dynamic Structural Integrity: The addition of Chromium (Cr2) refines the grain structure of the manganese steel, preventing micro-cracking and ensuring the mantle and concave wear evenly from top to bottom.
OEM Compatibility & Precision Fit
Downtime during a liner changeout is a significant drain on plant profitability. We eliminate the frustration of ill-fitting parts by adhering strictly to original equipment manufacturing blueprints. Every component is meticulously machined to guarantee a drop-in fit, entirely compatible with your existing equipment architecture.
Exact Dimensional Tolerances: Advanced CNC machining ensures that head nuts thread smoothly, eccentric bushings align perfectly, and mantles seat flawlessly on the main shaft.
Zero-Modification Installation: Site crews can install these spares directly out of the crate, eliminating the need for on-site grinding, shimming, or dangerous hot-work modifications.
Secure Locking Mechanisms: Precision-cast torch rings and frame liners ensure that once installed, the wear parts remain rigidly in place, preventing backing compound leakage or component shifting.
Seamless Operational Transition: The precise fit restores the crusher to its original factory settings, allowing operators to immediately resume production at optimal closed-side settings (CSS).
Advanced Manufacturing & Quality Control
Trust in heavy machinery components is built on verifiable, repeatable quality. Our manufacturing facilities operate under a stringent ISO 9001 certified quality management system. From the moment raw scrap is melted to the final coat of protective industrial spray paint, every step is monitored, recorded, and verified.
Spectrographic Chemical Analysis: Before any metal is poured, the molten alloy undergoes rigorous chemical testing to ensure the exact percentages of Manganese, Carbon, and Chromium are present.
Flaw Detection Protocols: Ultrasonic and magnetic particle inspections are utilized to scan deep within the casting, ensuring absolute freedom from internal voids, shrinkage, or micro-fractures.
Precision Heat Treatment: A carefully controlled water-quenching and tempering process maximizes the austenitic structure of the manganese steel, locking in its ductile core and tough exterior.
3D Dimensional Scanning: Finished parts are measured against digital OEM blueprints using advanced laser scanning technology to verify every critical mounting surface and taper.
Cost-Effectiveness & Lower TCO
Procurement in the aggregates and mining sector is a strategic exercise in maximizing Return on Investment (ROI). By sourcing directly from a primary manufacturer, operations bypass intermediary markups, securing premium wear parts at highly competitive price points. However, the true financial benefit is realized on the production floor.
Extended Replacement Intervals: The superior wear life of our Mn18Cr2 and Mn22Cr2 alloys means fewer maintenance shutdowns per quarter, directly increasing total annual tonnage.
Reduced Labor Expenditures: Fewer liner changes translate to lower overtime costs for maintenance crews and reduced exposure to hazardous heavy-lifting tasks.
Energy Efficiency: Maintaining optimal chamber geometry for longer periods prevents the crusher from drawing excess amperage, lowering the electrical cost per ton of crushed material.
Predictable Maintenance Budgeting: Consistent wear rates allow plant managers to forecast maintenance schedules with pinpoint accuracy, eliminating the financial shock of catastrophic part failures.
Stable Inventory & Fast Delivery
In the fast-paced world of mineral processing, waiting weeks for critical spares is not an option. We understand that every hour a crusher sits idle represents thousands of dollars in lost revenue. To mitigate this risk, we maintain a robust, strategically managed inventory of essential wear and mechanical parts.
Comprehensive Stock Levels: We keep ready-to-ship inventories of standard mantles, bowl liners, and critical bronze bushings, ensuring immediate availability for urgent requirements.
Rapid Dispatch Protocols: Orders are processed and prepared for freight forwarding with urgency, utilizing optimized logistics networks to reach remote mining sites globally.

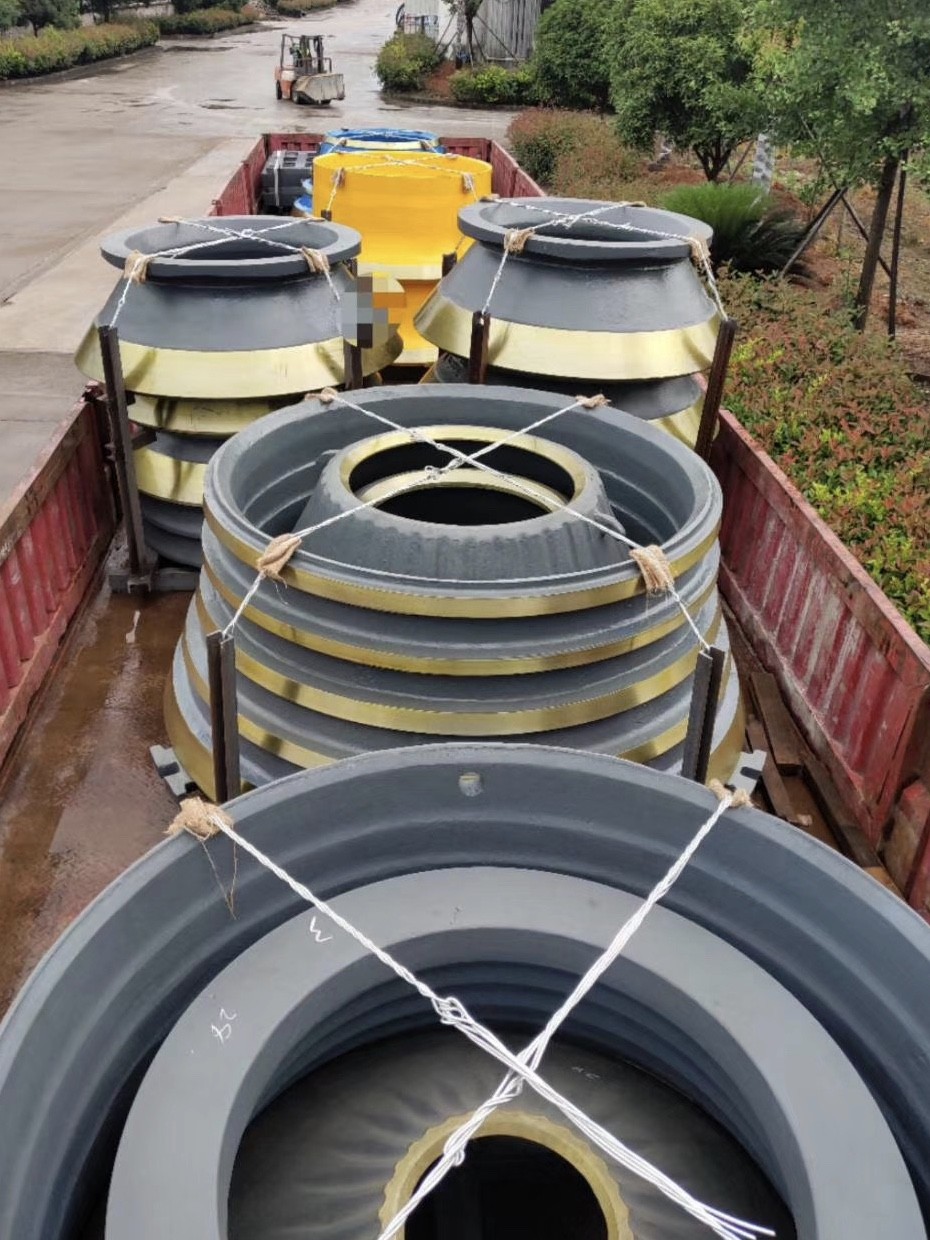

Secure Export Packaging: Every component is coated in protective anti-rust agents and secured in heavy-duty, seaworthy steel or wooden crates, guaranteeing they arrive in pristine condition.
Supply Chain Resilience: Our direct manufacturing capabilities allow us to rapidly scale up production to meet sudden spikes in demand, protecting your operation from global supply chain bottlenecks.
Technical Support & Custom Solutions
No two quarries possess the exact same geological profile. Abrasiveness, moisture content, and feed size vary wildly, meaning off-the-shelf solutions are not always optimal. As a dedicated manufacturing partner, we provide deep metallurgical expertise to tailor our components to your specific site conditions.
Application-Specific Alloy Formulation: Our engineering team can adjust the chemical composition of the castings to perfectly match the hardness and crushability index of your specific ore body.
Custom Chamber Profiling: We offer modified mantle and concave profiles (such as extra-coarse or fine designs) to optimize feed acceptance and product yield for specialized applications.
Expert Wear Analysis: We assist site managers in analyzing worn liners to identify uneven wear patterns, providing actionable recommendations to adjust feed distribution or crusher settings.
Comprehensive Lifecycle Support: From initial dimensional verification to end-of-life performance tracking, our technical team remains engaged to ensure continuous improvement in your crushing circuit.
Why Choose Us
Selecting a reliable source for heavy machinery components is a critical operational decision. We bridge the gap between exceptional metallurgical quality and economic pragmatism, serving as a steadfast pillar for high-volume processing plants worldwide.
Uncompromising Material Integrity: We never dilute our alloys. The chemical composition you specify is exactly what is poured, tested, and delivered.
Direct-to-Site Value: Operating as the source factory allows us to deliver uncompromising quality without the inflated costs associated with multi-tiered distribution networks.
Proven Global Track Record: Our wear parts are currently sustaining high-yield operations in some of the most unforgiving mining environments across the globe.
Dedication to Continuous Improvement: We continuously invest in advanced foundry technologies and CNC machining centers to push the boundaries of what our wear parts can endure.
Frequently Asked Questions (FAQ)
The inclusion of 2% Chromium in the Mn18Cr2 matrix significantly enhances the alloy's initial hardness and refines its grain structure. While standard manganese steel relies entirely on heavy impact to work-harden, the Mn18Cr2 variant offers immediate resistance to abrasive sliding wear, making it vastly superior for processing materials like granite and basalt where friction is just as damaging as impact.
Can these replacement mantles and concaves be installed without modifying the existing crusher frame or main shaft?
Absolutely. Every component is reverse-engineered and machined to exact OEM dimensional tolerances. They are guaranteed drop-in replacements, requiring no grinding, shimming, or alterations to your equipment. They lock into place perfectly using standard backing compounds and original locking hardware.
What quality assurance documentation is provided with a shipment of wear parts?
We provide comprehensive traceability for every casting. Upon request, shipments include detailed material test reports (MTRs) outlining the exact chemical composition from the spectrometer analysis, as well as documentation of heat treatment curves and ultrasonic flaw detection results, ensuring full compliance with our ISO 9001 standards.
How do your custom chamber profiles improve overall crushing efficiency?
Standard profiles often struggle with highly specific feed gradations or unusual rock shapes. By analyzing your feed material and desired output, we can cast mantles and concaves with modified nip angles and crushing zones. This customization prevents material boiling in the chamber, increases throughput, and yields a more cubical final product shape.
What is the typical lead time for large-scale replacement orders for mining operations?
Because we operate as a direct manufacturer with extensive warehousing, standard profiles in Mn13Cr2 and Mn18Cr2 are frequently held in stock for immediate dispatch. For large volume or custom-alloy orders, our streamlined foundry processes allow us to cast, machine, and ship within highly competitive timeframes, minimizing your operational exposure to downtime.
