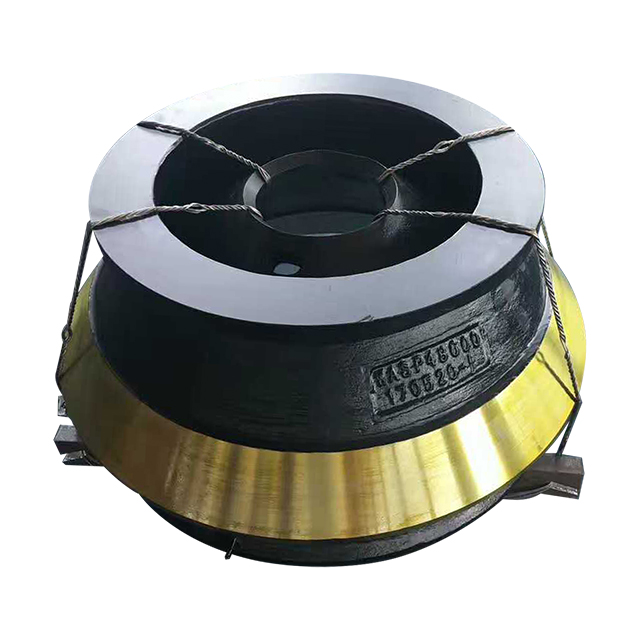

HP500 Cone Crusher Concave And Mantle

Our HP500 bowl liner and mantle are core wear parts for HP500 hydraulic cone crushers, made of graded high manganese & alloy modified steel with precision casting and professional heat treatment. Featuring superior anti-wear and anti-impact performance, OEM-standard cavity ensures uniform discharging size and high crushing efficiency. We support OEM customization and factory direct supply. Widely applied in mining and aggregate crushing, these liners boast long service life and prominent cost-effectiveness.

Quantity:
Material:	Mn13,Mn18,Mn22
Availability:





Inquire Add to Basket

Model:
HP500
Brand:
QR

Product Description

HP500 Bowl Liner and Mantle Product Introduction

Our HP500 Bowl Liner and Mantle are precision-crafted wear components exclusively for Metso HP500 multi-cylinder hydraulic cone crushers, built to withstand heavy-load, high-abrasion mining and aggregate crushing environments. As core crushing consumables, they deliver exceptional abrasion resistance, stable mechanical performance and extended service life while keeping finished particle size uniform amid continuous high-volume ore crushing.

What are Bowl Liner and Mantle?

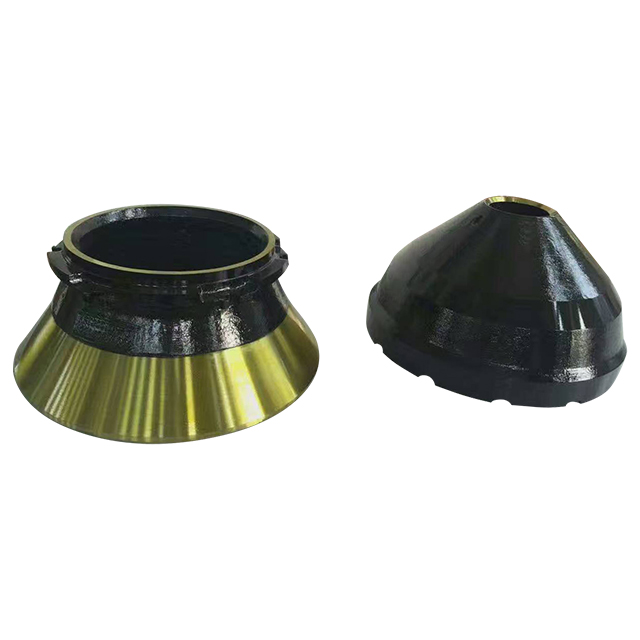

Bowl liner and mantle are the key wearable spare parts of HP500 hydraulic cone crusher. The bowl liner is fixed inside the adjustment ring, while the mantle is mounted on the oscillating movable cone; together they form the full crushing cavity. Driven by eccentric gyration, the moving mantle squeezes, grinds and impacts raw ores against stationary bowl liner to realize material fragmentation. Their casting precision and wear resistance directly decide crusher output, aggregate quality and overall running cost of crushing plants.

High-Quality Materials for Superior Performance

We produce HP500 liners with premium casting materials balancing hardness, impact toughness and anti-abrasion performance, three mainstream grades available:

Standard High Manganese Steel Mn13Cr2

Great toughness and outstanding shock resistance; generates obvious work hardening under repeated ore impact to raise surface hardness. Ideal for medium crushing of medium-hard limestone, iron ore and common gravel.

Alloy Modified High Manganese Steel Mn18Cr2

Optimized metallurgical formula with added alloy elements boosts wear resistance and anti-cracking property, effectively preventing brittle fracture under alternating heavy impact, suited for medium-fine crushing of granite, basalt and abrasive hard stone.

Super High Manganese Alloy Mn22Cr2 (Optional TIC Insert)

Ultra wear-resistant grade with optional carbide insert reinforcement, excellent for ultra-hard high-abrasive quartz, taconite and sharp mine rock in severe working conditions.

Key Features

Excellent Wear Resistance: Integral precision casting plus standardized heat treatment strengthens surface hardness, resisting long-term friction damage and prolonging service cycle significantly.
Strong Impact Toughness: Scientific alloy composition absorbs instantaneous feeding impact, avoiding liner deformation, crack and early scrapping.
OEM Standard Cavity Design: Strictly manufactured per original HP500 dimension parameters; optimized cavity ensures smooth material passing and even finished grading for higher product quality.
Perfect Installation Matching: High dimensional accuracy enables direct assembly on standard HP500 crusher without on-site cutting or modification.
Cost Saving: Longer service span reduces replacement frequency, cuts downtime and lowers total maintenance expense.

Why Choose Our HP500 Bowl Liner and Mantle?

Long Service Life: Premium raw materials and mature foundry technology extend service cycle and minimize production loss from frequent part replacement.
Wide Application: Widely used in mine exploitation, quarry aggregate, construction sand, metallurgy and solid waste recycling for medium and fine crushing of various ores and rocks.
Flexible Customization: Provide customized cavity shape, material formulation and OEM casting per customer feedstock and onsite working requirements.
Factory Direct Supply: Direct sales from foundry remove intermediate markup, stable stock, fast shipment and full after-sales technical guidance for installation and maintenance.

Item No.	Machine Type	DESCRIPTION
7055308508	HP500	MANTLE

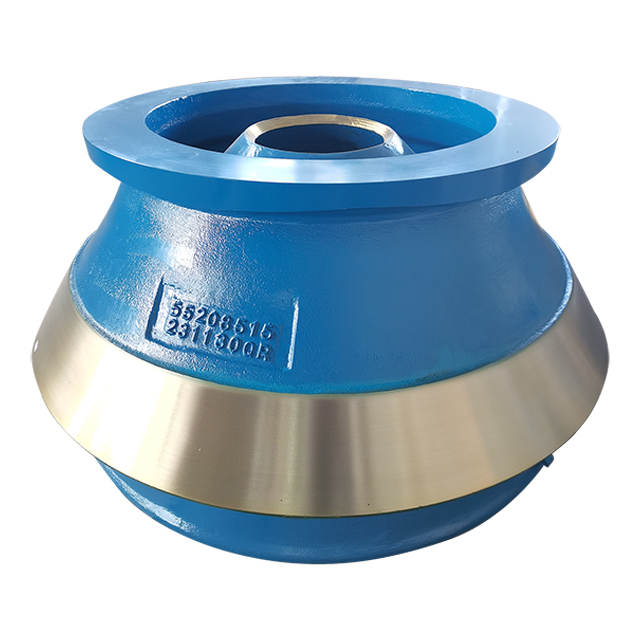

7055208515	HP500	BOWL LINER
7055308510	HP500	MANTLE
7055208520	HP500	BOWL LINER
N55208532	HP500	BOWL LINER
N55308520	HP500	MANTLE
7055208516	HP500	BOWL LINER
1048314244	HP500	BOWL LINER
1048314243	HP500	BOWL LINER
1048314241	HP500	BOWL LINER
N55308515	HP500	MANTLE
7055308509	HP500	MANTLE

Our HP500 wear liners have earned worldwide clients’ recognition with stable quality, low failure rate and high cost performance, capable of steady long-term operation under harsh crushing conditions for mineral processing and aggregate production.

Contact us now for detailed specifications, bulk prices and customized upgrade solutions for your HP500 cone crusher wear parts.
