HP series crusher mantle crusher concave

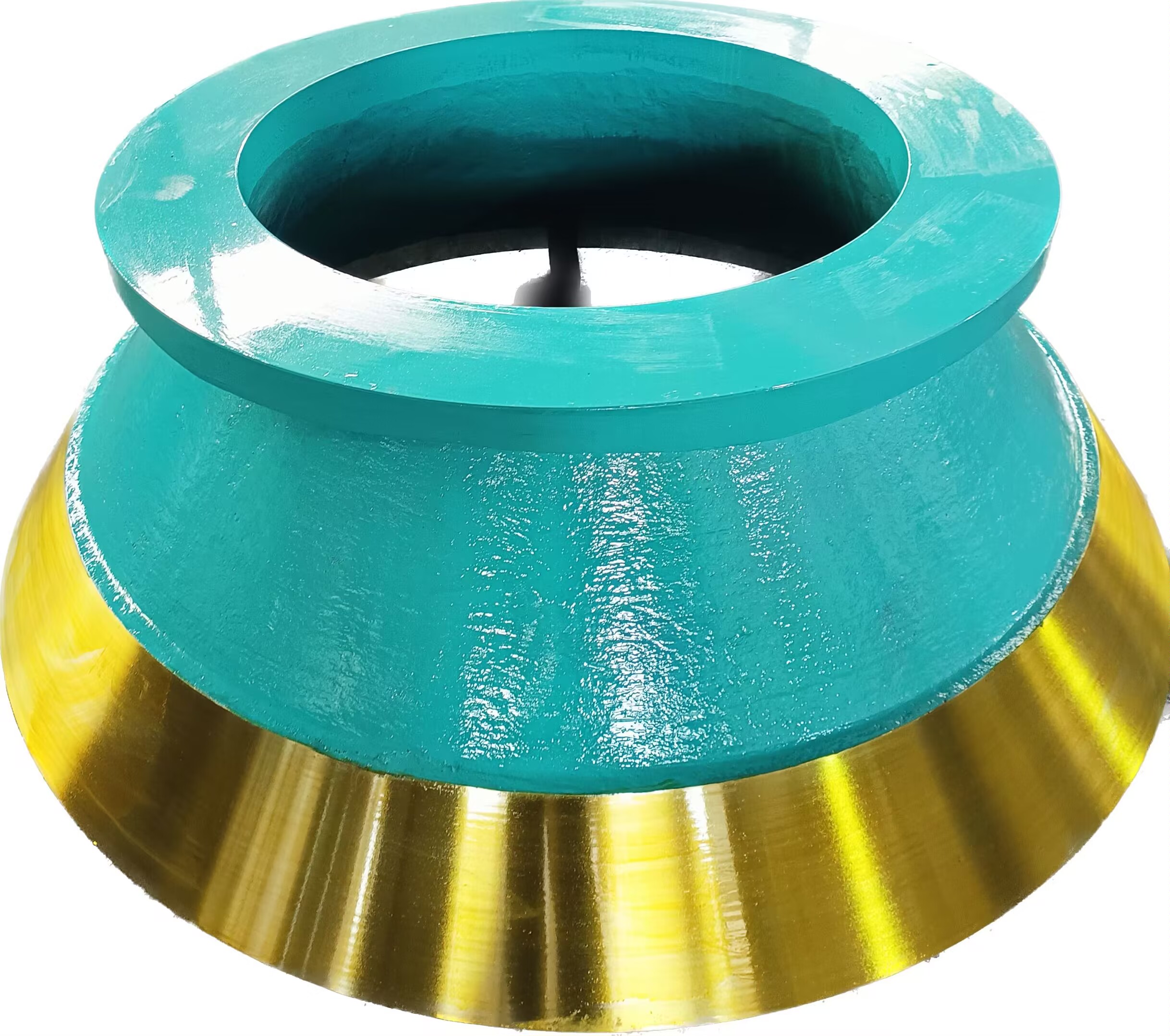

The concave and mantle of a crusher are key components in the crushing chamber. The concave, also known as the bowl liner, forms the outer fixed crushing surface. It is typically made of high-manganese steel or other wear-resistant alloys to withstand the intense impact and abrasion during the crushing process. The concave's shape is designed to guide the materials into the crushing zone and ensure efficient crushing.

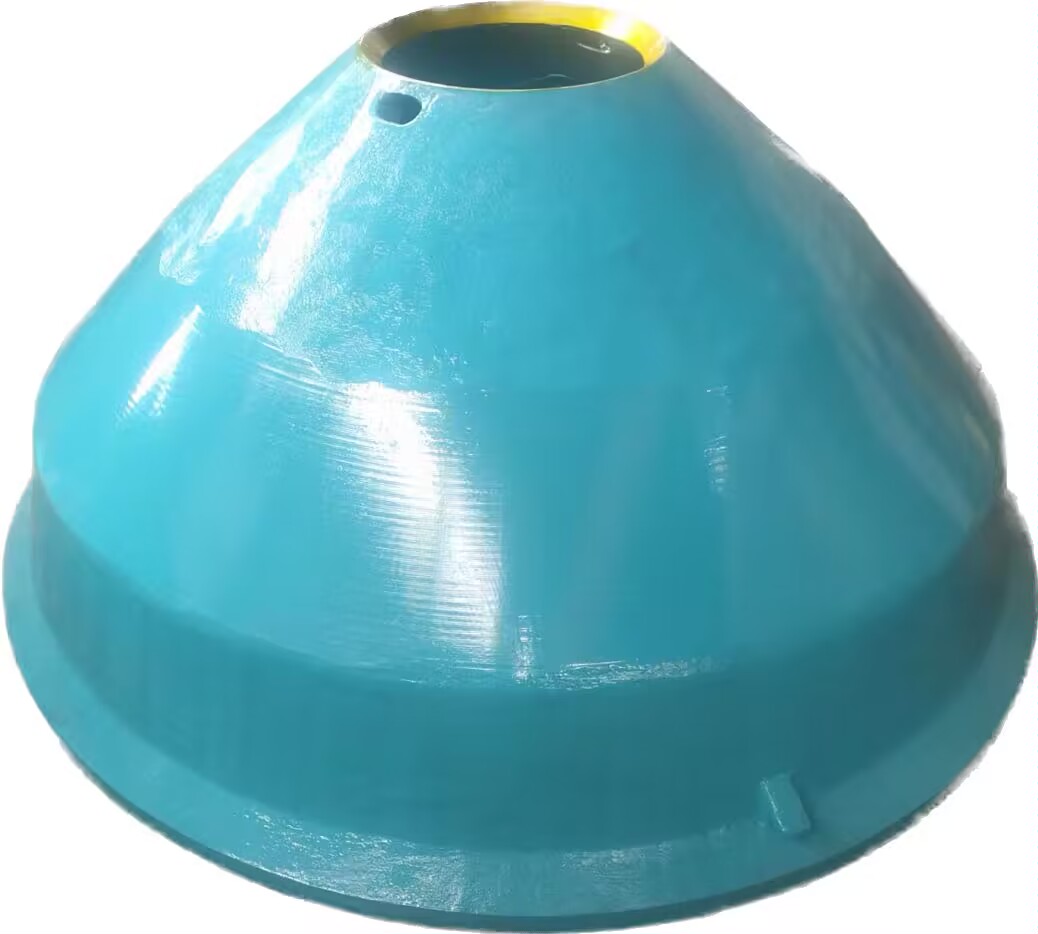

The mantle, on the other hand, is the inner movable crushing surface.

Quantity:
Size:	AS PER DRAWING
Color:	CUSTOMIZED
Material:	Mn13Cr2
Availability:





Inquire Add to Basket

Model:
HP
Brand:
QR
Code:
004

Product Description

Concave And Mantle For Cone Crusher

Concave and Mantle (crushing cone) are the working surface of a cone crusher, with the help of which hard metals are crushed. There are two cones on the crusher - movable and fixed. The movable (inner) cone is attached to the head of the shaft, and the fixed (outer) cone is attached to the frame. The wear resistance of the cones depends on the manganese content. In many models of cone crushers, it is required to fill the cavities between the cone body and adjacent surfaces with a potting compound. When choosing a low-quality potting compound, it may harden poorly, and the operation of the crusher will be disrupted.

Materials: Mn13Cr2, Mn18Cr2, etc.
Application: spare parts for cone crusher used in the mining, metallurgy, construction, road building, etc.
Advantages: The production process, especially the heat treatment, is strictly controlled , thus improving the service life even for crushing of hard rocks with high abrasiveness.

Delivery:

1.According to the type and size of the product, our factory provides different packaging methods.

2. The most common are iron frame packaging, export wooden box packaging and wooden bearing packaging.
3. If customers have special requirements, we can also customize packaging

Metso	GP series	GP100, GP100S, GP200S, GP220, GP330, GP300S, GP550, GP500S, GP7
Metso	HP series	HP100, HP200, HP300, HP400, HP500, HP3, HP4, HP5, HP6, HP900
Sandvick	CH series	CH420, CH430, CH440, CH830i, CH840i, CH660, CH860i, CH865i, CH870i, CH880, CH890i, CH895i
Sandvick	CS series	CS420, CS430, CS440, CS840i, CS660
