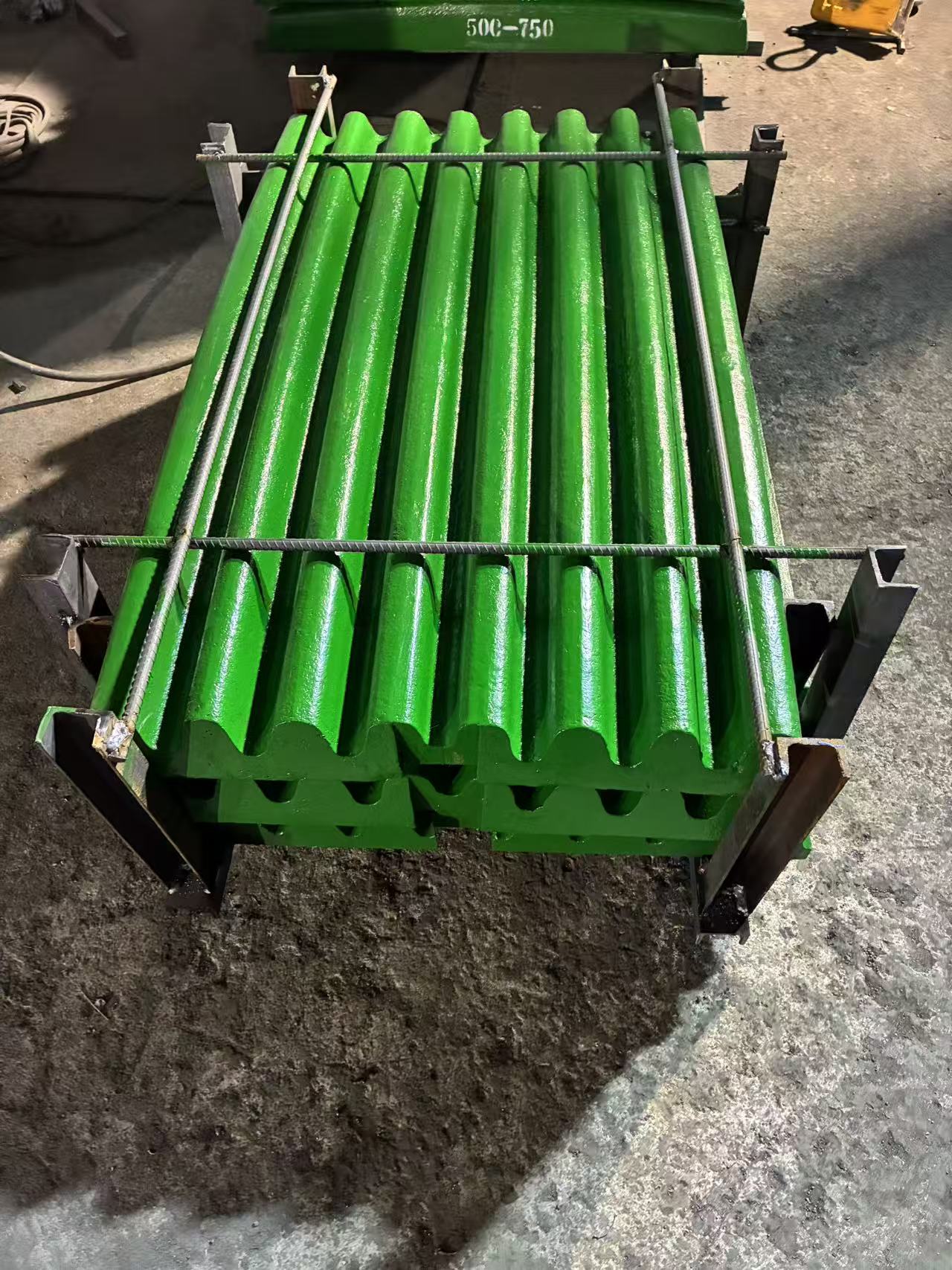

Our jaw plates for Shanbao jaw crushers are built for durability and efficient crushing in quarrying and mining operations. These essential jaw crusher parts break large stones and ores into smaller pieces for further processing. As heavy minerals enter the crusher, the resulting impact puts considerable stress on internal components. The plates must withstand these forces to maintain performance and avoid premature wear.

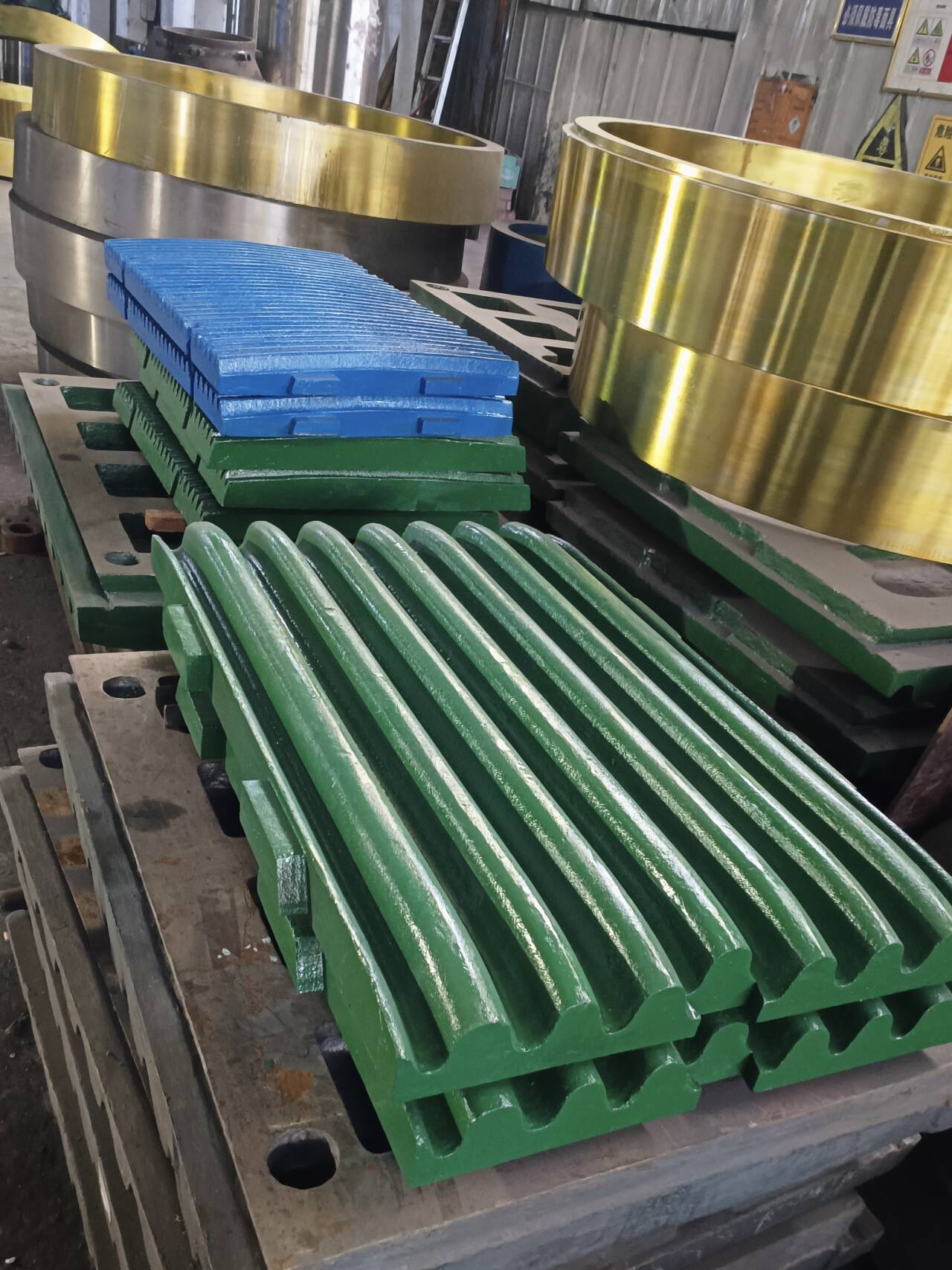

The crushing chamber contains two main wear components: fixed jaw plates and swing jaw plates. Together, they apply compression to fracture materials such as limestone, granite, and iron ore. As the swing jaw moves toward the fixed jaw, the pressure breaks dense rock into manageable aggregates. This repeated, heavy-duty action requires wear parts that retain their structural integrity throughout demanding shifts, helping prevent the primary crushing stage from becoming a production bottleneck.

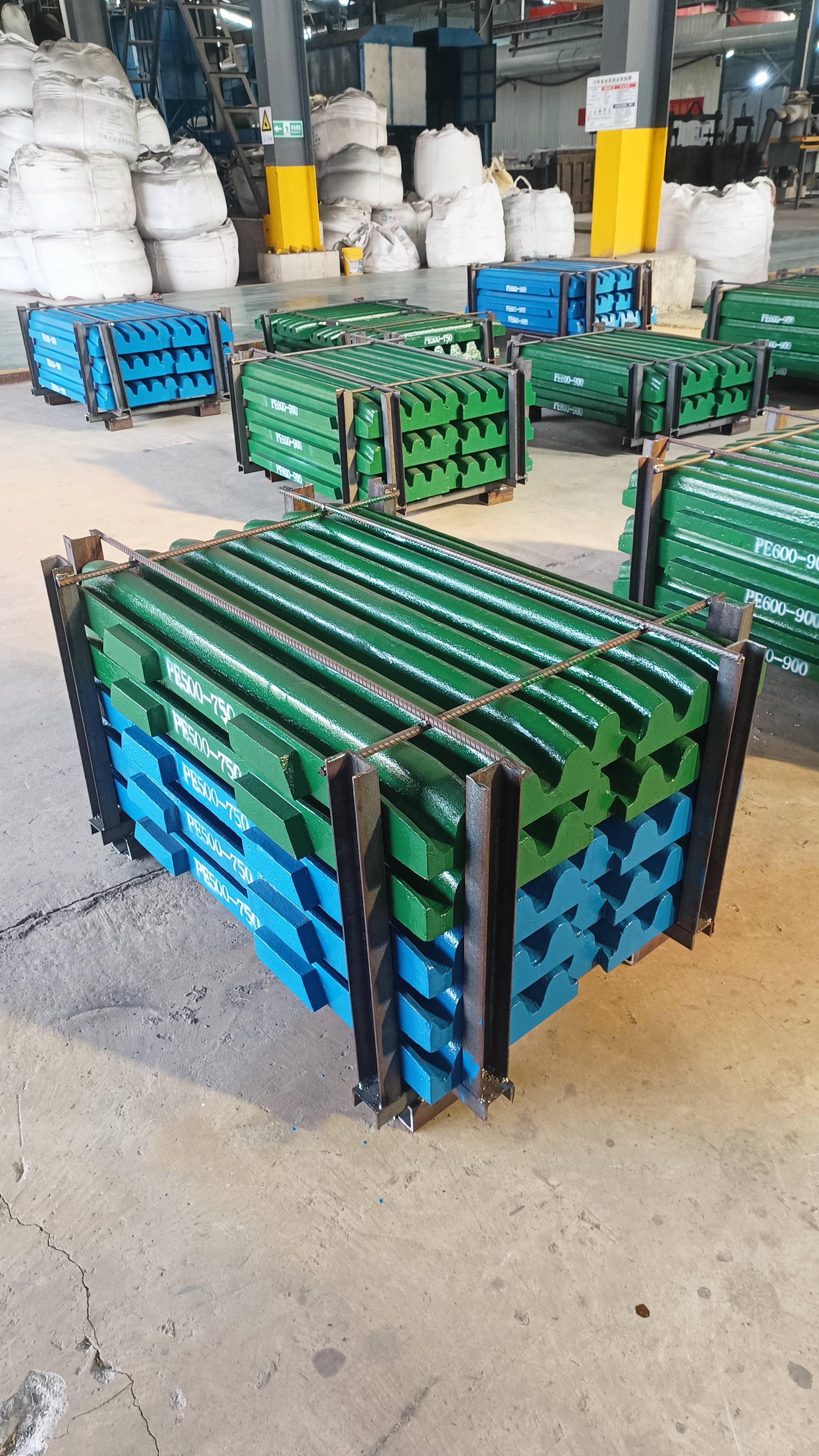

We supply jaw plates compatible with a wide range of Shanbao jaw crusher models, including PE400×600, PE500×750, PE600×900, PEX250X1000, PEX250X1200, and PE750×1060. Each product is manufactured to precise technical drawings for accurate fitment. By following original OEM part numbers and dimensional tolerances, we ensure a 100% seamless installation process. Maintenance crews can replace worn plates without forced adjustments, grinding, or on-site modifications.
We also offer non-standard customization for specific abrasive materials beyond standard specifications. For highly abrasive quartzite or sticky clay-heavy ores, our engineering team can adjust the plate profile and thickness to suit your operating conditions.
Shanbao Crusher Series | Supported Models (Including but not limited to) | Fitment Guarantee |
|---|---|---|
PE Series (Primary) | PE400×600, PE500×750, PE600×900, PE750×1060 | 100% OEM Drawing Match |
PEX Series (Secondary) | PEX250X1000, PEX250X1200 | 100% OEM Drawing Match |
Our jaw plates use high manganese steel casting technology, such as premium Mn13Cr2, to provide strong wear and impact resistance. The material hardens during operation through work-hardening, helping extend service life. Repeated impacts from falling rocks trigger a phase transformation in the plate's outer surface, increasing its hardness. At the same time, the inner core remains tough and ductile, helping prevent the plate from snapping or shattering under extreme shock loads.

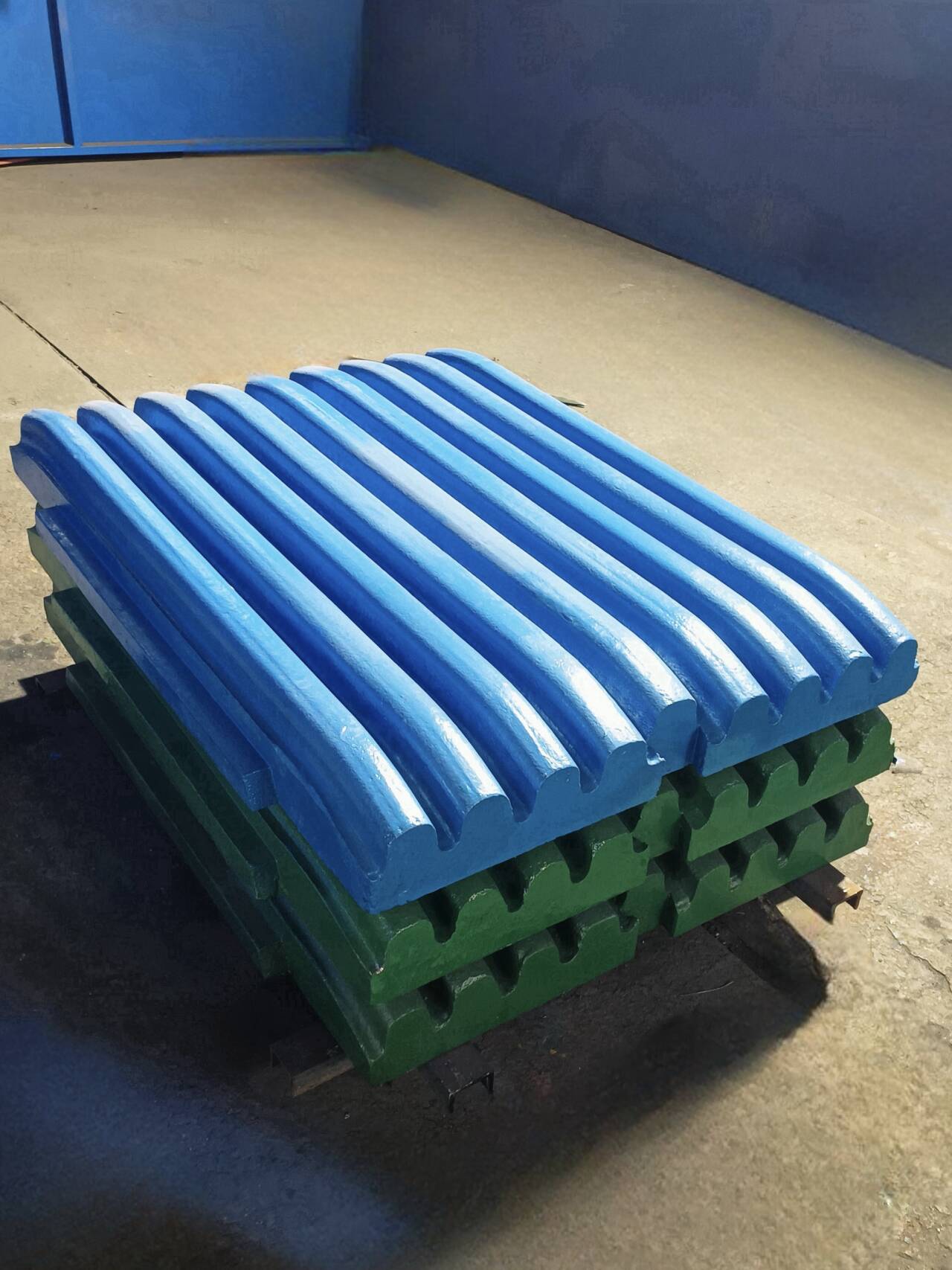

We offer various tooth patterns to match different material characteristics and production requirements. The right tooth profile improves gripping and material flow, helping prevent round rocks from slipping upward during crushing. Our plates also feature a symmetric, reversible design. When the lower section reaches maximum wear, operators can flip the plate upside down. This makes better use of the casting, effectively doubling its usable lifespan and maximizing procurement value.
Our jaw crusher parts undergo strict quality control, from raw material selection through final machining. Production covers 12 standardized steps, including advanced mold design, precision casting, specialized heat treatment (water toughening), and CNC machining. We inspect each jaw plate for dimensional accuracy and structural integrity. Before pouring, optical emission spectrometers verify the molten steel's chemical composition. We also conduct rigorous non-destructive testing (NDT) to check that castings are free of internal shrinkage, cracks, and porosity.
These jaw plates are widely used in stone quarries, mining sites, and construction material production plants. Their robust construction and reliable performance make them practical replacements for original equipment. From highly abrasive basalt and hard granite to mixed construction waste, these wear parts help maintain consistent output grading and the required discharge opening for longer periods.
With factory-direct supply and consistent quality, our Shanbao jaw plates offer cost-effective wear solutions for global customers. Their optimized design helps facility managers improve daily operations in several ways:
Substantial Cost Reductions: Save up to 40%-60% in comprehensive maintenance costs through longer replacement cycles and competitive factory-direct pricing.
Minimized Equipment Downtime: Improved wear resistance reduces the frequency of maintenance stops, helping crushing plants sustain continuous, high-volume production.
Versatile Material Handling: Handle applications ranging from primary hard rock mining to urban infrastructure recycling without frequent plate replacements.
Maximized Energy Efficiency: Optimized tooth profiles help rocks fracture cleanly and quickly, reducing the electrical load on the crusher's main motor.
Our jaw plates for Shanbao jaw crushers are engineered for high durability and efficient crushing performance in quarry and mining applications. These essential jaw crusher parts are responsible for breaking large stones and ores into smaller sizes for further processing. When heavy minerals enter the equipment, the immediate mechanical impact requires internal components that can withstand extreme physical stress without premature degradation.
The crushing chamber is composed of two main wear components: the fixed jaw plates and the swing jaw plates. The interaction between these plates generates strong compression forces that fracture materials such as limestone, granite, and iron ore. As the swing jaw moves rhythmically toward the fixed jaw, the immense pressure creates a deafening crunch, breaking down dense geological structures into manageable aggregates. This continuous, heavy-duty operation demands wear parts that maintain their structural integrity shift after shift, ensuring your primary crushing stage never becomes a bottleneck.
We supply jaw plates compatible with a wide range of Shanbao jaw crusher models, including PE400×600, PE500×750, PE600×900, PEX250X1000, PEX250X1200, and PE750×1060. Our products are manufactured according to precise technical drawings to ensure perfect fitment. By strictly adhering to original OEM part numbers and dimensional tolerances, we guarantee a 100% seamless installation process. Maintenance crews will experience smooth replacements without the need for forced adjustments, grinding, or modifications on site.
Beyond standard specifications, we also support non-standard customization tailored to specific abrasive materials. Whether you are dealing with highly abrasive quartzite or sticky clay-heavy ores, our engineering team can adjust the profile and thickness to match your exact operational challenges.
Shanbao Crusher Series | Supported Models (Including but not limited to) | Fitment Guarantee |
|---|---|---|
PE Series (Primary) | PE400×600, PE500×750, PE600×900, PE750×1060 | 100% OEM Drawing Match |
PEX Series (Secondary) | PEX250X1000, PEX250X1200 | 100% OEM Drawing Match |
Using high manganese steel casting technology (such as premium Mn13Cr2), our jaw plates offer excellent resistance to wear and impact. The material’s work-hardening property allows it to become harder during use, significantly extending service life. When subjected to continuous heavy impacts from falling rocks, the outer surface of the plate undergoes a phase transformation, rapidly increasing in hardness. Meanwhile, the inner core retains its tough, ductile nature, preventing the plate from snapping or shattering under extreme shock loads.
Various tooth patterns are available to optimize crushing efficiency depending on the material characteristics and production requirements. Proper tooth design ensures improved gripping capability and better material flow, preventing round rocks from slipping upwards during the crushing cycle. Furthermore, our plates feature a symmetric, reversible design. Once the lower section experiences maximum wear, the plate can be flipped upside down, effectively doubling the usable lifespan of a single casting and maximizing your procurement value.
Our jaw crusher parts undergo strict quality control from raw material selection to final machining. The entire production encompasses 12 standardized steps, including advanced mold design, precision casting, specialized heat treatment (water toughening), and CNC machining. Each jaw plate is carefully inspected to ensure dimensional accuracy and structural integrity. We utilize optical emission spectrometers to verify the chemical composition of the molten steel before pouring, and conduct rigorous non-destructive testing (NDT) to guarantee the castings are entirely free of internal shrinkage, cracks, or porosity.
These jaw plates are widely used in stone quarries, mining sites, and construction material production plants. Their robust design and reliable performance make them ideal replacements for original equipment. Whether you are processing highly abrasive basalt, hard granite, or recycling mixed construction waste, these wear parts deliver consistent output grading and maintain the required discharge opening for longer periods.
With factory-direct supply and consistent quality, our Shanbao jaw plates provide cost-effective wear solutions for global customers. By choosing our optimized components, facility managers can achieve significant operational improvements:
Substantial Cost Reductions: Save up to 40%-60% in comprehensive maintenance costs through extended replacement cycles and highly competitive factory-direct pricing.
Minimized Equipment Downtime: The enhanced wear resistance means fewer maintenance stops, allowing your crushing plant to maintain continuous, high-volume production.
Versatile Material Handling: Easily tackles everything from primary hard rock mining to urban infrastructure recycling projects without requiring frequent plate change-outs.
Maximized Energy Efficiency: The optimized tooth profiles ensure rocks fracture cleanly and quickly, reducing the electrical load on the crusher's main motor.
