When your operation needs to crush large, irregular feed material, standard roll surfaces often fall short. Our Heavy-Duty Toothed Manganese Steel Roll Shells are built for demanding primary crushing applications. Large boulders of ore or coal place constant impact loads on crushing equipment. To handle these conditions, wear parts must do more than withstand repeated impacts. They must also help fracture material efficiently. These heavily profiled shells are engineered to match major brands of double roll crushers and mineral sizers. They serve deep-pit mining, coal processing, heavy metallurgy, cement production, and large-scale aggregate extraction, providing the grip needed to break down stubborn, oversized feed. We also offer direct replacement services through precise reverse engineering and custom drawing processing, helping return heavy machinery to operation without unnecessary downtime.
Our engineering team has developed a range of tooth profiles to maximize gripping and breaking force. Tooth geometry directly affects how the roll shell engages raw material. A well-designed profile reduces slippage against the metal surface and directs rotational energy into the fracturing process.
Tall, well-spaced teeth engage large particles quickly and draw them into the crushing zone. This spacing helps prevent material from riding on top of the rolls, reducing slippage and increasing overall throughput. The tooth arrangement also concentrates pressure at each contact point, helping split large lumps along their natural fault lines.
We offer square, wedge, and studded tooth profiles to suit different material characteristics. Sharp wedge teeth, for example, work well for fracturing brittle materials such as coal and certain limestones. They penetrate the surface and help force a clean split. Broader teeth provide a larger impact surface for tougher, highly abrasive rock. This wider contact area distributes stress across more metal, helping prevent premature wear.
For demanding applications, we often specify premium Mn18Cr2 manganese steel. This alloy is selected for its metallurgical properties under extreme impact loads. Its higher manganese and chromium content provides operational advantages that can directly affect maintenance cycles and replacement costs.
Mn18Cr2 offers superior resistance to cracking and breakage when the rolls encounter uncrushable objects or exceptionally large, hard feed. Standard carbon steels may shatter under the sudden shock of tramp iron entering the crushing chamber. Manganese steel instead absorbs this kinetic energy through microscopic deformation, helping resist fracture.
One of this material's most valuable properties is its ability to harden under pressure. As the teeth repeatedly strike heavy rock, the surface layer undergoes structural changes and develops much greater hardness. This work-hardening effect extends wear life under highly abrasive conditions. Meanwhile, the inner core retains the ductility needed to absorb repeated heavy impacts without catastrophic failure.
Casting large toothed shells requires careful control. The complex tooth molds must fill completely, while internal shrinkage defects must be avoided as the large volume of molten metal cools and solidifies. Our experienced foundry team uses advanced casting techniques and thermal simulation software to map the cooling process. This planning helps ensure that every tooth is structurally dense, sound, and free of internal flaws.
We verify internal integrity through comprehensive non-destructive testing. Every heavy-duty shell undergoes rigorous Ultrasonic Testing (UT) and Magnetic Particle Testing (MT) to detect hidden voids and micro-fissures. We also perform precise hardness testing and metallographic analysis on test blocks from every heat batch. Operating under a certified ISO 9001 quality management system, we ensure that material composition and manufacturing processes meet strict international heavy mining machinery standards. The result is a roll shell built to withstand the daily forces of primary crushing, deliver predictable wear, and help protect your production targets.
Our work goes beyond pouring molten metal into a mold. We provide end-to-end services designed to address complex material reduction challenges and meet demanding operating requirements.
Application Expertise and OEM Services: We focus on solving crushing problems, not just casting steel. Our team evaluates your feed material, compressive strength, and moisture content to recommend a suitable tooth profile. Through complete OEM and ODM customization, we handle every stage, from initial site analysis and 3D drawing design to custom mold development and final product delivery.
Defect-Free Castings: We use advanced simulation software to optimize gating and risering systems, helping ensure that every tooth tip is fully dense and ready for impact. This controlled approach to metallurgy helps reduce unexpected breakdowns at your facility.
Commitment to Fit: Heavy-duty shells must fit precisely to avoid stress points along the mounting shaft. We precision-machine all mounting surfaces to ensure a secure, vibration-free installation.
Production Capacity and Dependable Lead Times: Our large-scale heavy casting workshop and organized supply chain support massive procurement orders. Stable production schedules help you plan critical maintenance turnarounds and minimize delays.

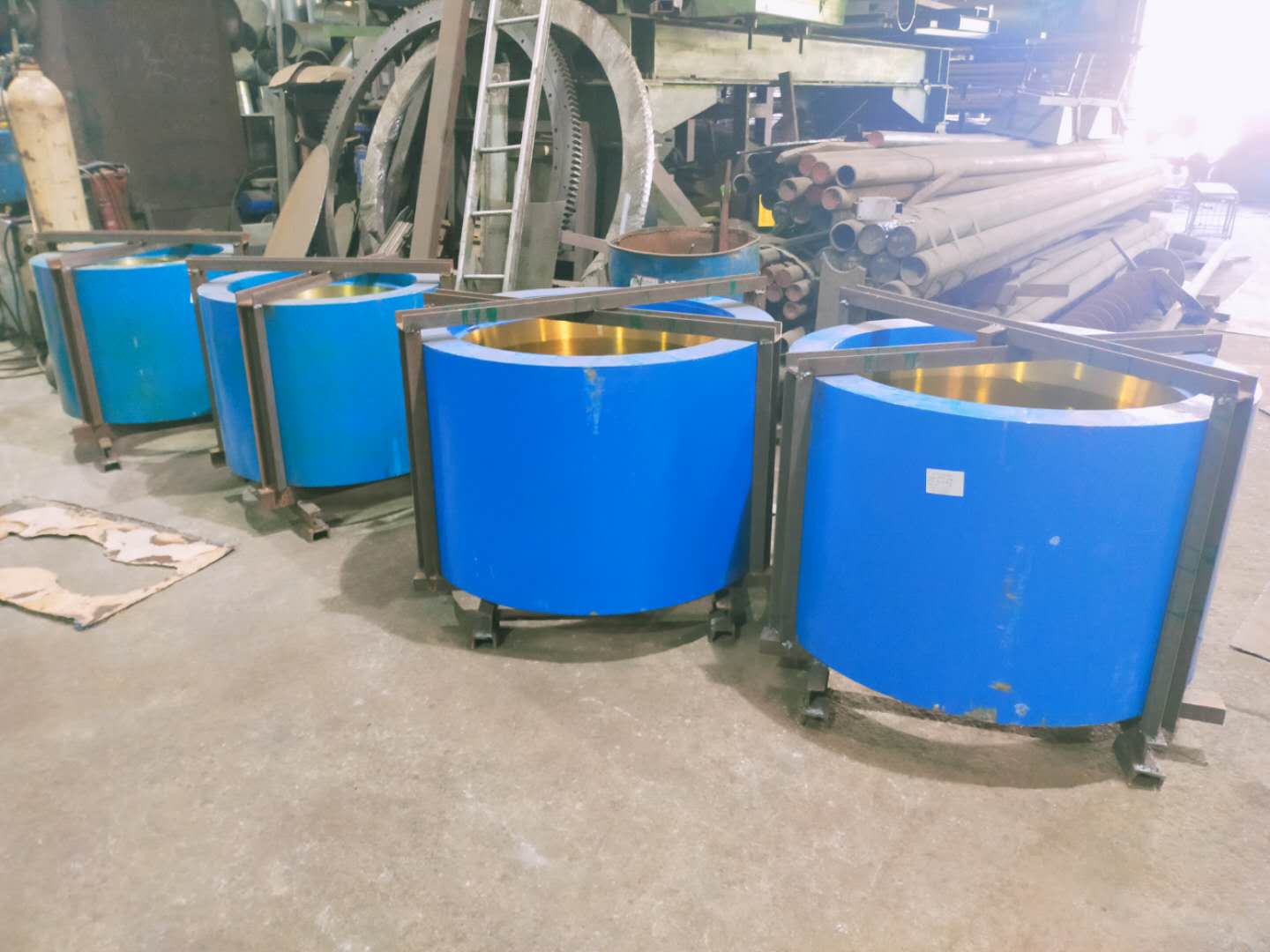

Secure Packaging and Global Logistics: Heavy-duty wear parts need robust protection during ocean transport. We apply industrial-grade rust prevention treatments and secure each roll shell in custom-built heavy steel frames or reinforced wooden crates. This packaging protects critical components against maritime moisture and handling impacts, helping them arrive at your site in pristine condition.
