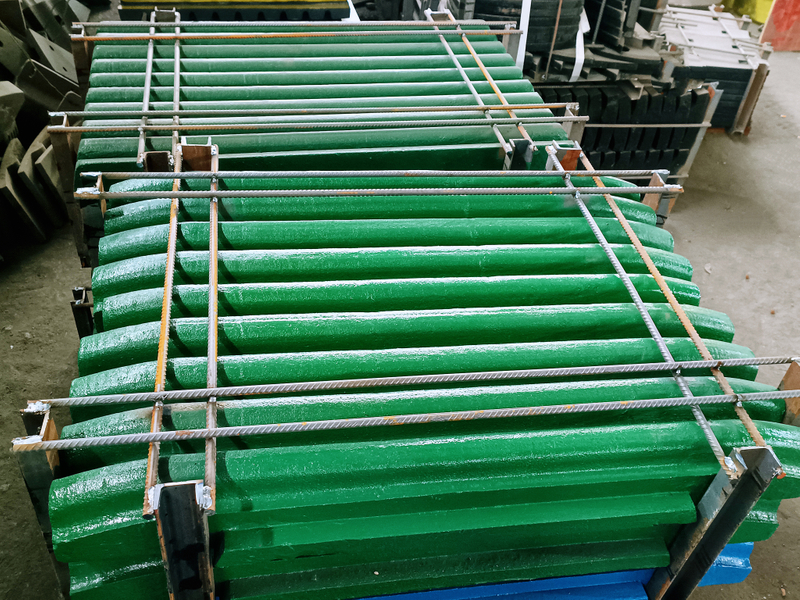

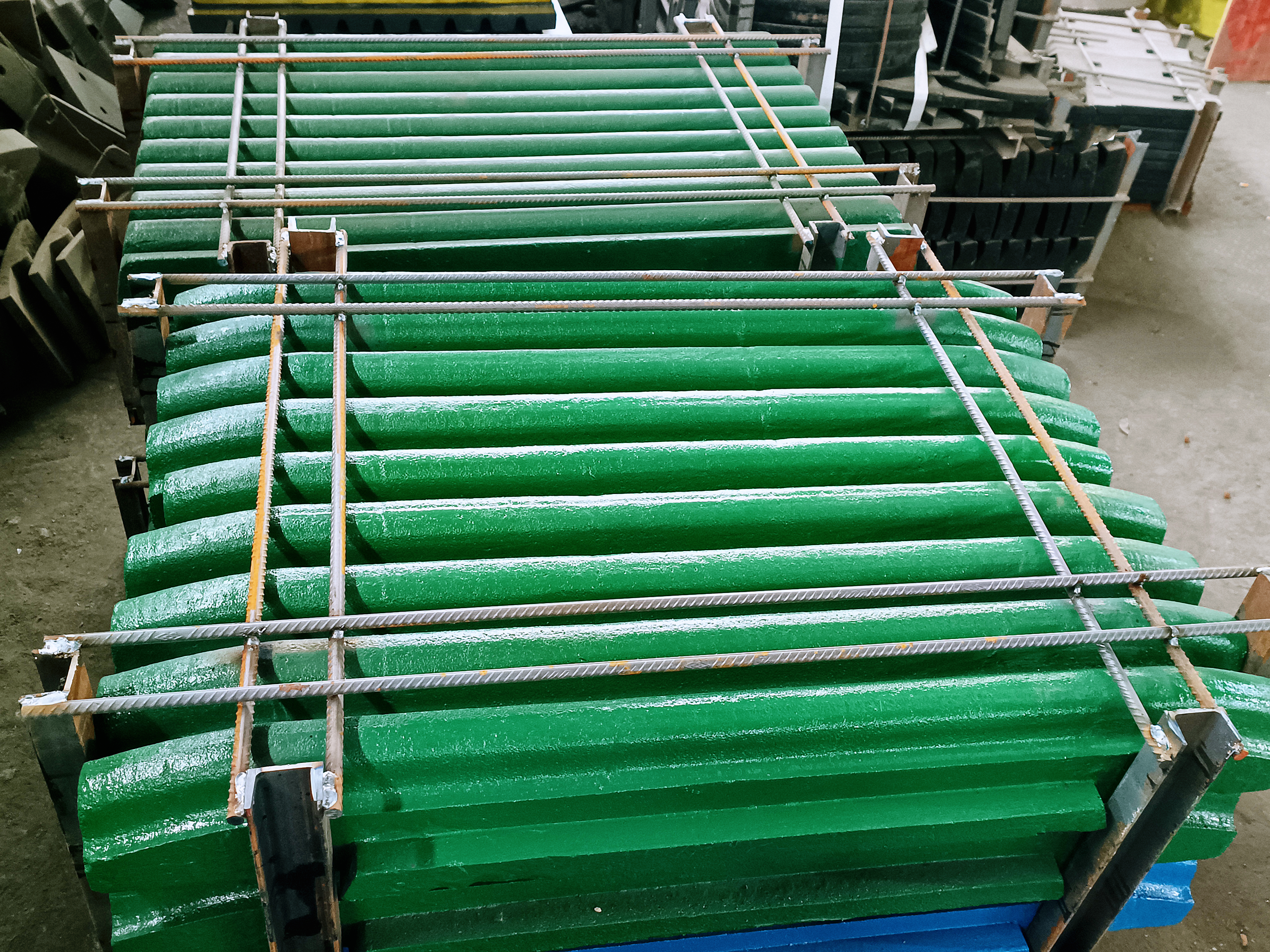

Our Shanbao PE 600x900 fixed and movable jaw plates are precision-cast wear parts specially manufactured for Shanbao brand jaw crushers. As core crushing components, these jaw plates endure continuous high-pressure extrusion and friction during operation. They maintain stable crushing performance for coarse stone processing, perfectly adapting to heavy-duty mining and quarrying working conditions. With strict dimensional compliance for Shanbao original equipment, these replacement parts have become highly recognized consumables for crushing plants.
What are Jaw Plates?
Jaw plates include fixed jaw plates and movable jaw plates, which are the key wearable parts of a jaw crusher. The two jaw plates form a trapezoidal crushing cavity. The movable jaw plate periodically squeezes raw materials against the fixed jaw plate to realize stone breaking. The surface tooth structure and material hardness directly affect crushing capacity, discharging particle size and production efficiency. High-quality jaw plates effectively avoid frequent replacement and equipment vibration.
High-Quality Materials for Superior Performance
We select premium raw materials to enhance wear resistance and impact resistance for Shanbao PE600x900 jaw plates:
High Manganese Steel
This material possesses outstanding toughness and work-hardening properties. Under continuous stone impact, the surface becomes harder, resisting deformation and cracking when crushing hard materials such as granite, basalt and iron ore.
Alloy Manganese Steel
Added with chromium and molybdenum alloy elements, it greatly improves surface abrasion resistance. It is suitable for long-term crushing of high-hardness and highly abrasive stones, extending service life obviously.
Key Features
Excellent Wear Resistance: Professional heat treatment strengthens surface hardness, reducing abrasion during long-time heavy-load crushing.
High Compression Toughness: Integral casting technology prevents brittle fracture under strong squeezing force.
Original Dimensional Standard: Fully compatible with Shanbao PE 600x900 jaw crusher for direct installation without modification.
Optimized Tooth Structure: Reasonable tooth shape improves material biting ability and enhances crushing efficiency.
Economical Cost: Longer service life cuts down replacement frequency and daily maintenance expenses.
PE/PEX Series Jaw Crusher model as below:
| PE-400×600PE-500×750PE-600×900PE-750×1060PE-800×1060PE-870×1060PE-900×1200PE-1000×1200PE-1200×1500PEX-250×1000PEX-250×1200PEX-300×1300 |
Why Choose Our Jaw Plates?
Stable Lifespan: High-grade raw materials minimize wear loss and reduce production downtime.
Wide Application: Ideal for mining, quarrying, road construction and aggregate processing industries.
Custom Service: Customized tooth types and alloy ratios are available according to customer working conditions.
Factory Direct Sales: Complete specifications, sufficient stock and competitive ex-factory price.
Our Shanbao PE600x900 jaw plates enjoy high reputation among global customers. Reliable hardness and stable mechanical performance ensure continuous operation for crushing lines.
Contact us now to get high-quality jaw crusher wear parts and optimize your production cost.
